Custom Precision FPCB Manufacturer | One-Stop Fabrication & Assembly

BestFPC is a custom precision FPCB manufacturer in China, offering fine-line flexible PCB fabrication, SMT assembly, free DFM review, and prototype-to-production services. We manufacture precision flexible circuits with tight dimensional requirements, complex outlines, and reinforced connection areas for medical electronics, industrial equipment, wearable devices, and compact electronic modules.

With over 20 years of PCB manufacturing experience, we support custom FPCB projects involving fine-pitch connections, thin substrates, accurate coverlay alignment, and specialized materials. Our engineering team reviews manufacturing feasibility before production to help prevent costly revisions and assembly problems.

What Types of Custom Precision FPCBs Can We Manufacture?

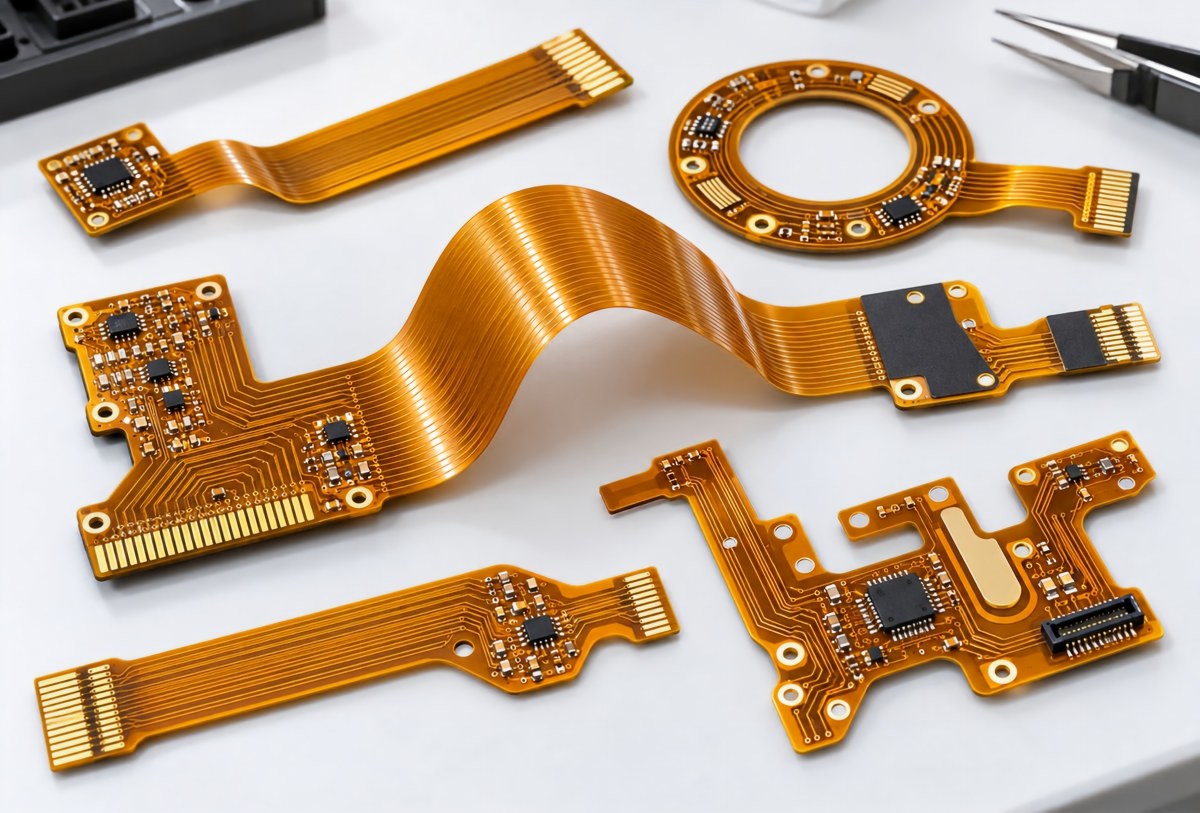

We manufacture single-sided, double-sided, multilayer, and custom-shaped precision FPCBs for applications requiring compact circuit layouts, fine-pitch interconnections, and precise mechanical dimensions.

Our manufacturing services cover:

• Fine-Line Flexible PCB: High-density copper patterns with narrow traces and spacing for miniature sensors, fine-pitch connectors, and compact electronic assemblies.

• Ultra-Thin Flexible PCB: Thin polyimide-based circuits for wearable devices, display connections, and products with limited installation space.

• Double-Sided Precision FPCB: Two conductive layers with plated interconnections for more complex routing without significantly increasing the circuit footprint.

• Multilayer Precision FPCB: Multiple conductive layers for high-density routing, controlled-impedance applications, and complex electrical connections.

• Custom-Shaped Flexible PCB: Irregular outlines, narrow connection tails, branching circuits, precision mounting holes, and customized contact areas.

• Stiffener-Reinforced FPCB: Flexible circuits with localized PI or FR4 reinforcement for connectors, SMT component areas, and mechanical mounting.

We also work with adhesiveless polyimide materials, different copper thicknesses, custom coverlay openings, and application-specific surface finishes. For connector applications, board thickness, contact dimensions, and reinforcement are reviewed together to ensure the finished circuit fits the intended assembly.

What Precision FPCB Manufacturing Capabilities and Tolerances Can We Meet?

Our conventional precision FPCB manufacturing capabilities cover 1–4 layers, 0.06–0.60 mm finished board thickness, and 3/3 mil inner-layer line width/spacing at 18 μm finished copper thickness. More demanding specifications can be evaluated according to material selection, copper thickness, and layer construction.

How Do We Manufacture and Assemble Custom Precision FPCBs?

Our custom precision FPCB fabrication and assembly services cover circuit manufacturing, coverlay and stiffener processing, SMT component placement, soldering, and final inspection.

FPCB Manufacturing Process

1. DFM and Stackup Review: Our engineers check Gerber files, copper thickness, line width/spacing, critical dimensions, bend areas, and reinforcement requirements before manufacturing.

2. Material Preparation and Drilling: Approved polyimide copper-clad materials are prepared according to the stackup. Mechanical or laser drilling is used where appropriate, followed by the required hole metallization and plating.

3. Circuit Imaging and Etching: Circuit patterns are transferred onto the copper layers and processed through the applicable imaging, plating, and etching stages. Conductor dimensions and layer registration are controlled during production.

4. Coverlay and Stiffener Lamination: Coverlay openings are aligned with exposed pads and contact areas. PI or FR4 stiffeners are bonded at specified locations to support connectors and component mounting without restricting the intended flexible sections.

5. Surface Finishing and Profiling: The selected surface finish is applied, followed by laser cutting, punching, or routing. Finished circuits undergo dimensional inspection and electrical testing.

FPCB Assembly Process

1. BOM and Assembly Review: Component specifications, footprints, placement data, and assembly drawings are checked against the approved FPCB construction.

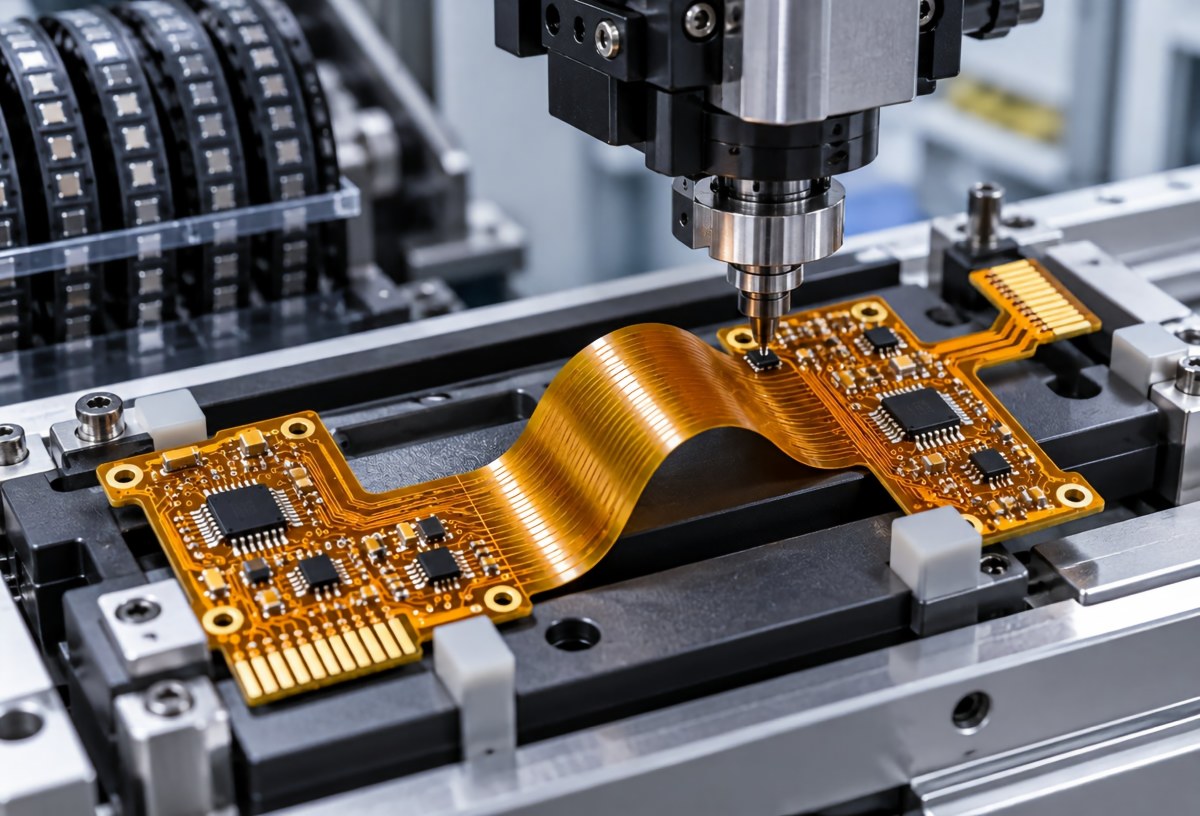

2. Fixture Preparation and SMT Placement: Suitable carriers or fixtures support the flexible circuit during solder paste printing and component placement, reducing movement and deformation.

3. Reflow Soldering: Soldering conditions are selected according to the component packages, solder materials, and flexible-board construction.

4. Inspection and Testing: Component placement, solder joints, and electrical connections are checked using the agreed inspection and testing methods.

We offer full turnkey, partial turnkey, and consigned-component assembly, including component sourcing, SMT assembly, and applicable testing. Customers can place bare-board and assembly orders with one supplier instead of coordinating separate fabrication and SMT providers.

How Do We Ensure Quality in Precision FPCB Manufacturing and Assembly?

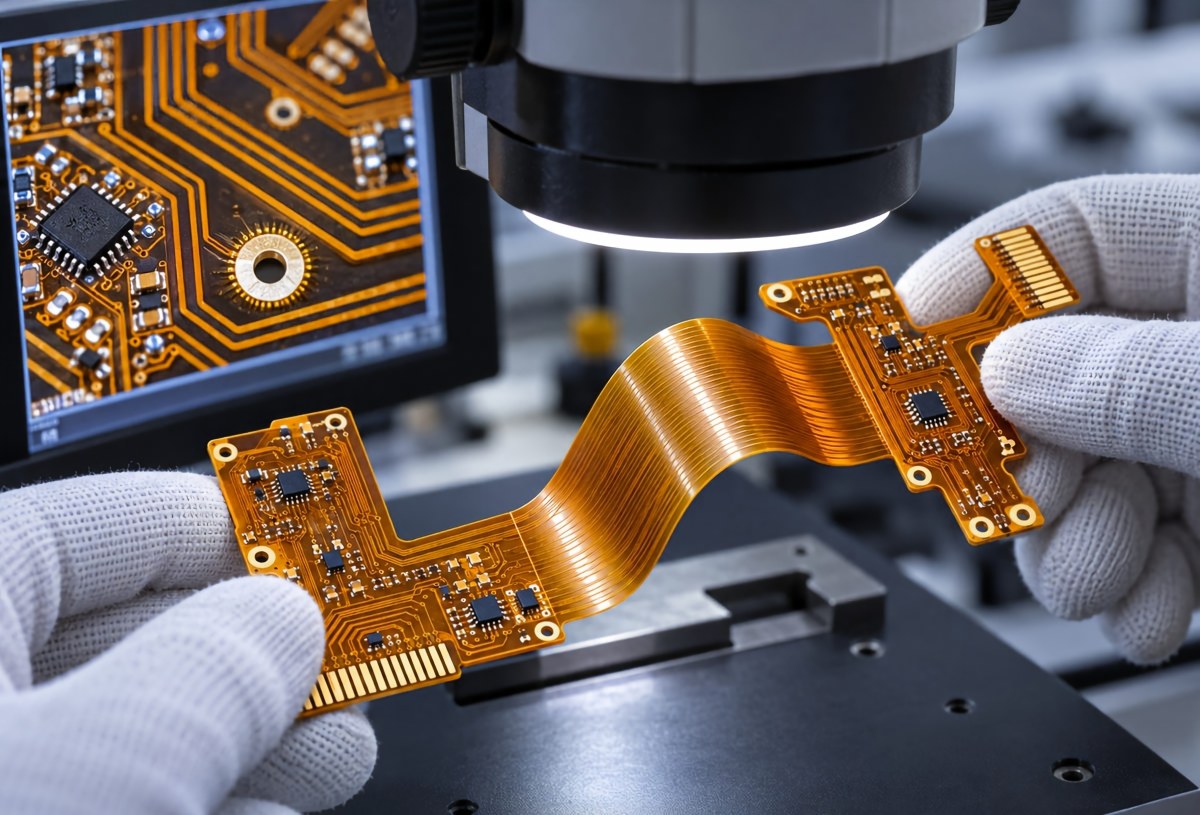

We inspect custom precision FPCBs at critical manufacturing stages, covering material specifications, circuit geometry, dimensional accuracy, electrical integrity, and assembly workmanship. Inspection requirements are established from the approved drawings and customer acceptance criteria.

Our quality control includes:

• Material and Stackup Verification: Check polyimide material type, copper thickness, dielectric construction, and reinforcement materials before fabrication.

• Circuit Inspection: Use AOI and appropriate magnified inspection to identify conductor defects, unintended shorts, and visible circuit-processing issues.

• Dimensional Measurement: Check critical hole positions, board outlines, coverlay openings, contact areas, stiffener locations, and finished thickness against the specified tolerances.

• Electrical Testing: Verify circuit continuity and isolation to identify open circuits and unintended connections.

• SMT Assembly Inspection: Check component orientation, placement, solder joints, and workmanship. X-ray inspection can be arranged for applicable hidden solder connections.

• Quality Documentation: Provide agreed dimensional reports, first-article inspection records, material traceability, and other customer-required documentation.

For fine-pitch connector FPCBs, special attention is given to finished insertion thickness, contact geometry, and stiffener alignment. A circuit may pass electrical testing but still fail to mate with its connector if these dimensions are incorrect.

We also support customer-specific inspection requirements for medical electronics, automotive electronics, aerospace, and industrial applications, subject to the applicable manufacturing and quality-system scope.

How Do We Support Custom Precision FPCB Prototypes and Mass Production?

We support precision FPCB prototyping, small-batch orders, and volume manufacturing, with no fixed minimum order quantity for eligible projects. Customers can evaluate the electrical and mechanical performance of a new flexible circuit before committing to larger orders.

Prototype inspection covers the specified critical features, including connector fit, finished thickness, hole positions, copper geometry, and reinforcement. Any necessary corrections are incorporated into the approved manufacturing revision before repeat production.

For subsequent orders, we maintain consistency through:

• Controlled Manufacturing Files: Approved Gerber files, stackup specifications, fabrication drawings, and revision records are used for production.

• Critical Dimension Inspection: Important dimensions, including connector areas, holes, and finished thicknesses, are checked against the agreed requirements.

• Material and Process Control: Changes affecting approved materials or manufacturing specifications are reviewed before implementation.

• First-Article and Batch Inspection: Agreed critical features are inspected during initial production and subsequent manufacturing batches.

• Production Planning: Materials, manufacturing capacity, assembly requirements, and delivery schedules are coordinated according to the order quantity.

For assembled FPCBs, the approved BOM, placement files, and testing requirements are also maintained for repeat production.

What Affects Custom Precision FPCB Manufacturing Cost and Lead Time?

Custom precision FPCB manufacturing costs and lead times depend on circuit density, layer count, material selection, dimensional tolerances, order quantity, and assembly requirements. Fine-line processing and nonstandard materials often require additional preparation.

For eligible standard FPCB projects, approximately 1.5 weeks can be used as an initial manufacturing lead time reference. Complex multilayer structures, special materials, and assembled orders require separate scheduling.

The final manufacturing and delivery schedule is confirmed after reviewing the fabrication files, material availability, order quantity, and required delivery date.

Case Study: Custom Precision FPCB Fabrication Made By BestFPC

Project Background

A compact electronic circuit project required a two-layer precision FPCB with fine copper traces, small interconnections, and controlled-impedance routing. The limited circuit area required much narrower conductors and spacing than conventional flexible PCB layouts.

Project Requirements and Challenges

The design specified 0.05 mm line width and 0.05 mm spacing, together with 0.10 mm laser-drilled holes and 0.30 mm pads. It also included a 50 Ω single-ended impedance target.

The main manufacturing challenges were maintaining narrow conductor geometry, positioning small drilled holes within their pads, and coordinating the copper dimensions with the selected dielectric construction. Fine-line imaging and laser drilling had to be controlled within the same flexible circuit.

Our Manufacturing Solution

We fabricated a two-layer FPCB sample using the specified fine-line circuit layout and laser drilling for the 0.10 mm holes. The manufacturing process addressed conductor formation, hole positioning, and the required layer construction.

The completed sample was examined under 200× magnification to inspect the fine copper patterns, pad structures, and laser-drilled holes.

Project Results

The two-layer precision FPCB sample was completed, with photographs and magnified images documenting the fabricated circuit patterns and drilled-hole structures.

The sample featured 0.05 mm specified line width/spacing and 0.10 mm laser-drilled holes, demonstrating the fabrication of fine copper features within a compact flexible circuit. The 50 Ω impedance requirement was a design target and remained subject to separate electrical verification.

Why Choose Us as Your Custom Precision FPCB Manufacturer?

With over 20 years of PCB manufacturing experience, we provide custom precision FPCB fabrication, SMT assembly, and engineering support for customers who need reliable manufacturing and straightforward supplier coordination.

• Free DFM Review: Our engineers review your drawings before manufacturing, helping identify problems with trace spacing, stackup, copper thickness, coverlay, and connector dimensions. You can resolve potential issues before paying for another prototype.

• Custom Precision Manufacturing: We manufacture fine-line circuits, ultra-thin FPCBs, multilayer structures, and reinforced connection areas. Your design is evaluated against the actual manufacturing process rather than a general list of minimum specifications.

• One-Stop Fabrication and Assembly: From bare FPCBs to component sourcing and SMT assembly, we coordinate the manufacturing stages through one supplier. This reduces communication gaps and makes it easier to manage technical changes.

• Quality Certifications and Inspection Support: Our quality-system credentials include ISO 9001, ISO 13485, IATF 16949, and AS9100D. Applicable certificates, facility scope details, and required inspection documents can support your supplier qualification process.

• Prototype and Volume Production: We accept small prototype orders for eligible designs and support subsequent production quantities. Approved manufacturing files and inspection requirements provide a consistent basis for repeat orders.

• Engineering and Delivery Support: We review special materials, critical manufacturing requirements, and expected delivery schedules before order confirmation. This gives you a clearer understanding of manufacturing feasibility and delivery arrangements.

Whether you need a fine-line flexible circuit, a reinforced connector FPCB, or a complete SMT-assembled product, we can evaluate the design and provide manufacturing services suited to your requirements.

FAQs About Custom Precision FPCB Manufacturing

Q1: Can a precision FPCB withstand repeated bending?

A1: Yes, with a suitable dynamic-flex construction. The bend radius, copper type, layer count, and required bending cycles must be evaluated for the intended application.

Q2: Can hard gold be used on FPCB connector fingers?

A2: Yes. Electroplated hard gold can be specified for suitable connector applications. Include the required plating thickness and contact specifications in the fabrication drawing.

Q3: Can you manufacture precision FPCBs using DuPont Pyralux materials?

A3: We can evaluate specified DuPont Pyralux materials. The exact material grade, copper configuration, and availability must be confirmed before quotation.

Q4: What is the difference between coverlay and solder mask on a precision FPCB?

A4: Coverlay is a flexible insulating film bonded over the circuit, while solder mask is a coating applied to selected areas. Material selection depends on flexibility, opening dimensions, and application requirements.

Q5: Can a precision FPCB have different thickness regions?

A5: Yes. Local stiffeners or region-specific layer constructions can create different thickness zones. The transition areas and required dimensions must be reviewed before fabrication.

Q6: Can I specify IPC-6013 acceptance requirements for my FPCB order?

A6: Yes. Provide the required IPC-6013 class, revision, and any additional acceptance criteria so the manufacturing and inspection requirements can be evaluated.

Q7: Can you use an alternative material if my specified laminate is unavailable?

A7: An alternative material can be proposed for evaluation. Any substitution affecting approved specifications requires customer authorization before implementation.

Q8: Can custom FPCBs be shipped in individual protective packaging?

A8: Yes. Individual packaging, ESD protection, and other handling requirements can be arranged according to the product and shipping conditions.

How Can You Get a Custom Precision FPCB Quote?

BestFPC provides custom precision FPCB fabrication, free DFM review, SMT assembly, and prototype-to-production manufacturing services. Send us your Gerber files, fabrication drawings, layer stackup, material specifications, critical tolerances, order quantity, required delivery date, and delivery location. For assembled FPCBs, include the BOM, placement files, and testing requirements.

Our engineering team will review your design, confirm manufacturing feasibility, and provide a quotation based on the required specifications and delivery schedule. Ready to get a quote for your flexible circuit baord quote? Email sales@bestfpc.com to request a free DFM review and quotation for your custom precision FPCB project.
