Key Takeaways
- Transparent flexible PCBs bend easily and are see-through. They work well for cool designs in wearables and small gadgets.
- Traditional PCBs are strong and cheaper. They are great for cars and factory machines.
- Pick a PCB based on your project’s needs, like cost, use, and where it will be used.
- Transparent flexible PCBs look nice and help create stylish designs for electronics and medical tools.
- Knowing how these PCBs differ helps you choose the right one for your design and technical needs.
What Are Transparent Flexible PCBs?
Definition and Features

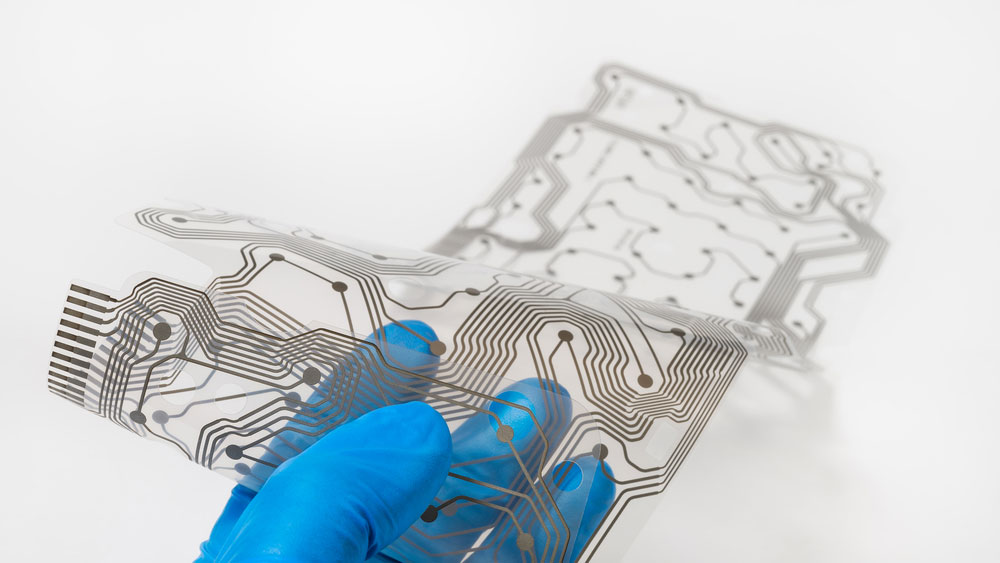

Transparent flexible PCBs are advanced circuit boards designed to bend and flex without breaking while maintaining optical transparency. These boards use innovative materials like polyimide or polyester film, enabling compact and lightweight designs. Their unique properties make them ideal for applications requiring both flexibility and aesthetic appeal, such as wearable devices and foldable screens.
| Characteristic | Description |
|---|---|
| Definition | Flexible PCBs are circuit boards that can bend and flex without breaking, made from materials like polyimide or polyester film. |
| Applications | Used in consumer electronics, medical devices, and wearables, enabling compact and innovative designs. |
| Key Properties | Include dielectric constants, loss tangent, conductivity, thermal stability, tensile strength, and flexibility, which enhance performance in various applications. |
| Role in Innovation | Facilitate advancements in technology, such as foldable screens in smartphones and ergonomic designs in wearables. |
Transparent flexible PCB technology plays a pivotal role in modern electronics, offering environmental benefits of transparent PCBs by reducing material waste and enabling sustainable designs.
Materials Used in Transparent Flexible PCBs
Transparent flexible PCBs rely on specialized materials that combine mechanical strength, thermal stability, and optical clarity. Common materials include polyimide, polyester (PET), liquid crystal polymer (LCP), and polytetrafluoroethylene (PTFE). Each material offers distinct advantages, such as high thermal resistance or low moisture absorption, making them suitable for various applications.
| Property | Polyimide | Polyester (PET) | LCP | PTFE | Adhesiveless |
|---|---|---|---|---|---|
| Thermal Resistance | Up to 260 °C | Up to 120 °C | Up to 200 °C | Up to 250 °C | Up to 240 °C |
| Dielectric Constant | 3.4 @1 MHz | 3.2 @1 MHz | 2.9 @1 GHz | 2.1 @10 GHz | 3.5 @1 MHz |
| Dissipation Loss (tan δ) | 0.0025 @1 MHz | 0.02 @1 MHz | 0.0015 @1 GHz | 0.0004 @10 GHz | 0.003 @1 MHz |
| Flexural Strength | 120 MPa | 80 MPa | 100 MPa | 90 MPa | 130 MPa |
| Moisture Absorption | 0.5 % | 0.3 % | 0.02 % | 0.01 % | 0.4 % |
| Typical Thickness Range | 12–75 µm | 25–125 µm | 50–150 µm | 25–100 µm | 12–50 µm |
These materials ensure the durability and performance of transparent PCB substrates, making them indispensable in flexible PCB technology.
Flexibility and Transparency in Design
Transparent flexible PCBs excel in applications requiring both mechanical flexibility and optical clarity. Their ability to bend and conform to various shapes without compromising functionality makes them ideal for wearable electronics and compact devices.
- The a-IZO film on a poly-ether-sulfone (PES) substrate exhibits an optical transparency of 86% at 550 nm and an average of 83% in the visible range (400–700 nm), comparable to other flexible transparent anodes.
- The low sheet resistance of the a-IZO film remains nearly constant under a cyclic bending test with a strain of 1%, proving its suitability for flexible applications.
- The electroluminescence (EL) spectrum stabilizes over 1000 bending cycles, demonstrating the mechanical flexibility of the a-IZO anode.
Transparent PCBs are not only functional but also aesthetically appealing, making them irreplaceable in industries like consumer electronics and medical devices. Their environmental benefits further enhance their value, as they contribute to sustainable and innovative designs.
What Are Traditional PCBs?
Definition and Features
Traditional PCBs, also known as rigid PCBs, are circuit boards designed with a fixed, non-flexible structure. These boards serve as the backbone of electronic devices, providing a stable platform for components and electrical connections. You’ll find them in applications ranging from consumer electronics to industrial machinery. Their layered construction allows for complex circuitry, making them ideal for devices requiring high performance and reliability.
Key features include:
- Rigid Structure: Ensures stability and prevents deformation during operation.
- Multi-Layer Design: Supports intricate circuits for advanced functionality.
- Standardized Manufacturing: Guarantees compatibility across various industries.
Traditional rigid PCBs remain the preferred choice for applications demanding durability and cost-effectiveness.
Materials Used in Traditional PCBs
The construction of traditional PCBs relies on robust materials that ensure structural integrity and electrical performance. Laminates, such as FR-4, CEM-1, and G-10, form the foundation of these boards. These laminates consist of layers of cloth or paper cured with thermoset resin, providing essential insulation and mechanical strength.
Common materials include:
- Pre-preg: Fiberglass impregnated with resin, crucial for layer bonding.
- Core Materials: Dielectric substrates with copper foils on both sides.
- Copper Foils: Thin layers that create electrical pathways.
These materials enable traditional PCBs to withstand high temperatures and mechanical stress, ensuring reliable performance in demanding environments.
Durability and Reliability
Durability defines the success of traditional PCBs in critical applications. You’ll see them in industries like automotive, medical, and consumer electronics, where reliability is non-negotiable. Rigorous testing methods validate their long-term performance under extreme conditions.
| Testing Method | Objective | Importance |
|---|---|---|
| Solder Float Testing | Evaluates thermal stability by subjecting the PCB to molten solder. | Ensures the PCB withstands thermal cycles without damage, preventing warping or delamination. |
| Peel Test | Measures adhesive strength of copper traces on the PCB. | Ensures strong adhesion to prevent electrical failures and extend PCB lifespan. |
| Accelerated Life Testing (ALT) | Subjects PCB to extreme conditions to simulate long-term usage. | Identifies potential failure modes and assesses reliability over expected lifespan. |
Additional methods, such as burn-in testing and highly accelerated stress testing (HAST), further ensure that traditional PCBs meet stringent quality standards. These tests highlight their ability to endure thermal, mechanical, and electrical stresses, making them indispensable in applications requiring high durability.
Key Differences Between Transparent Flexible PCBs and Traditional PCBs
Material Composition
Transparent flexible PCBs and traditional PCBs differ significantly in their material composition, which directly impacts their functionality and applications. Transparent flexible PCBs use materials like polyimide, polyester, and liquid crystal polymer (LCP). These materials allow bending and twisting while maintaining optical clarity. This flexibility makes them ideal for compact devices and irregularly shaped designs.
In contrast, traditional PCBs rely on rigid materials such as FR-4 and CEM-1, which provide structural stability but lack flexibility. Their stiff construction suits applications requiring durability and high performance, such as industrial machinery and automotive systems.
- Key Material Differences:
- Transparent flexible PCBs: Polyimide, polyester, LCP, PTFE.
- Traditional PCBs: FR-4, CEM-1, G-10.
These material choices define the distinct roles of each PCB type in modern electronics. Transparent flexible PCBs excel in wearable devices and foldable screens, while traditional PCBs dominate robust and standardized setups.
Flexibility and Design Adaptability
Transparent flexible PCBs offer unmatched flexibility and design adaptability. Their ability to bend and conform to various shapes enables innovative designs in industries like wearables, medical devices, and consumer electronics. For example, fitness trackers and smartwatches benefit from their lightweight and compact structure.
| Aspect | Description |
|---|---|
| Manufacturing Complexity | Multilayer devices involve multiple complex processes to ensure reliable electrical connections. |
| Flexibility | Enhanced flexibility is achieved through the use of flexible materials and multilayer designs. |
| Functional Integration | Multilayer designs allow for the integration of more functions, enhancing overall device practicality. |
| Performance Improvement | Incorporating quasi-solid electrolytes improves flexibility and prevents issues like electrolyte leakage. |
Traditional PCBs, while durable, lack the adaptability of flexible printed circuit boards. Their rigid structure limits their use in applications requiring dynamic movement or irregular shapes. Transparent flexible PCBs, on the other hand, enable space-saving designs and high-density layouts, making them indispensable for compact electronics.
Transparency and Aesthetic Appeal
The transparency of transparent flexible PCBs sets them apart from traditional PCBs. Their optical clarity enhances the aesthetic appeal of devices, making them ideal for applications like displays, touch panels, and LED lighting systems. Transparent PCBs combine visual appeal with functional benefits, such as improved signal quality and thermal management.
- Core Applications:
- Transparent glass PCBs are used in industries prioritizing aesthetics, such as consumer electronics and medical devices.
- Their transparency allows for sleek designs, contributing to the environmental benefits of transparent PCBs by reducing material waste.
Traditional PCBs lack this aesthetic advantage. Their opaque structure focuses on durability and reliability, which suits industrial and automotive applications but limits their use in visually demanding designs. Transparent flexible PCBs bridge the gap between functionality and aesthetics, offering innovative solutions for modern electronics.
Durability and Longevity
When choosing between transparent flexible PCBs and traditional PCBs, durability plays a critical role. Transparent flexible PCBs, while innovative, face challenges in this area. Their materials, such as polyimide and polyester, provide flexibility but are more prone to wear and tear over time. Repeated bending or exposure to harsh environments can degrade their performance. For instance, transparent conductive materials often exhibit higher electrical resistance, which may reduce efficiency in long-term applications. Additionally, their thin and delicate substrates make them more susceptible to mechanical damage during assembly or use.
Traditional PCBs, on the other hand, excel in durability. Their rigid structure, often made from FR-4 or similar materials, ensures stability under demanding conditions. These PCBs withstand high temperatures, mechanical stress, and prolonged usage without significant degradation. Industries like automotive and aerospace rely on their proven reliability for critical systems. Testing methods, such as solder float testing and accelerated life testing, further validate their longevity.
If your project demands a PCB that can endure extreme conditions or long-term use, traditional PCBs offer a clear advantage. However, for applications prioritizing flexibility and innovation, transparent flexible PCBs can still perform well with proper design considerations and usage limitations.
Cost and Manufacturing Complexity
The cost and complexity of manufacturing transparent flexible PCBs often exceed those of traditional PCBs. Specialized materials like ultra-thin PET or liquid crystal polymer, combined with advanced production techniques, drive up expenses. For low-volume runs, these costs become even more pronounced. Additionally, the fragility of transparent materials increases the likelihood of damage during production, further raising costs.
| Factor | Description |
|---|---|
| Higher Production Costs | Specialized materials and advanced techniques increase costs, especially for low-volume runs. |
| Fragility of Materials | Glass and ultra-thin PET are more fragile than standard materials, leading to potential damage. |
| Limited Copper Layers | To maintain transparency, manufacturers limit copper layers, affecting design flexibility. |
| Higher Electrical Resistance | Transparent conductive materials have higher resistance, impacting efficiency. |
| Laser Drilling Restrictions | Fragile substrates limit the feasibility of laser drilling for microvias. |
| Heat Management Difficulties | Lack of heavy copper makes heat management challenging in high-power applications. |
| Assembly and Repair Complexity | Soldering and repairs are more difficult due to the delicate nature of the materials. |
In contrast, traditional PCBs benefit from standardized manufacturing processes and widely available materials. Their production involves fewer specialized steps, reducing costs and simplifying assembly. The use of robust materials like FR-4 ensures fewer defects during manufacturing, further lowering expenses. If your project requires a cost-effective solution with minimal production challenges, traditional PCBs remain the better choice.
However, the higher costs of transparent flexible PCBs come with unique benefits. Their lightweight and flexible design enable innovative applications, such as wearable devices and foldable screens, which traditional PCBs cannot support. You must weigh these factors carefully to determine the best option for your specific needs.
Advantages of Transparent Flexible PCBs
Lightweight and Flexible Design
Transparent flexible PCBs offer unmatched flexibility and lightweight construction, making them ideal for modern electronics. Their thin and adaptable materials allow you to create designs that conform to irregular shapes or dynamic movements. This flexibility enhances the functionality of wearable devices, foldable screens, and compact gadgets.
The lightweight nature of these PCBs reduces the overall weight of your product, improving portability and user comfort. For example, fitness trackers benefit from this feature, ensuring they remain unobtrusive during physical activities. Transparent flexible PCBs also simplify assembly processes by enabling easier integration into intricate designs.
Enhanced Aesthetic Appeal
The transparency of these PCBs adds a unique aesthetic quality to your electronics. Unlike traditional PCBs, transparent flexible PCBs allow light to pass through, creating sleek and visually appealing designs. This feature is particularly valuable in industries where appearance matters, such as consumer electronics and medical devices.
Transparent PCBs enhance the visual quality of displays, touch panels, and LED systems. Their optical clarity ensures that your product stands out while maintaining high performance. This combination of functionality and aesthetics makes transparent flexible PCBs irreplaceable in applications requiring both innovation and style.
Tip: If your project prioritizes design and visual appeal, transparent flexible PCBs provide a competitive edge over traditional options.
Adaptability for Wearable and Compact Electronics
Transparent flexible PCBs excel in wearable devices and compact electronics. Their ability to bend and conform to various shapes allows you to design products that fit seamlessly into everyday life. For instance, smartwatches and health monitors benefit from their flexibility, ensuring comfort and durability during use.
These PCBs also support high-density layouts, enabling you to pack more functionality into smaller spaces. This adaptability is crucial for advancing technology in wearables and other compact devices. Transparent flexible PCBs empower you to push the boundaries of innovation, creating electronics that are both practical and cutting-edge.
Advantages of Traditional PCBs
Cost-Effectiveness and Affordability
Traditional PCBs offer significant cost advantages, making them a preferred choice for many industries. Their standardized manufacturing processes and readily available materials reduce production costs. Green PCBs, for instance, benefit from economies of scale due to high market demand and optimized manufacturing techniques.
| Factor | Explanation |
|---|---|
| Standardization | Green PCBs are standardized, leading to economies of scale in production. |
| Material Availability | Green materials are more readily available, reducing costs compared to other colors. |
| Production Efficiency | Optimized manufacturing processes for green PCBs lower production costs. |
| Market Demand | High demand for green PCBs results in competitive pricing. |
| Industry Standards | Compliance with industry standards for green PCBs avoids additional costs associated with non-standard colors. |
These cost benefits make traditional PCBs an affordable solution for projects requiring reliable performance without exceeding budget constraints.
Proven Reliability in Various Applications
Traditional PCBs excel in reliability, ensuring consistent performance across diverse applications. Rigorous testing methods validate their durability and functionality under challenging conditions. Shock testing, for example, ensures that PCBs can withstand mechanical impacts, while electrical performance evaluations confirm their ability to transmit signals efficiently.
| Testing Method | Purpose |
|---|---|
| Shock Testing | Identifies potential failures from mechanical shocks, ensuring PCBs can withstand impacts. |
| Electrical Performance | Assesses PCB's ability to transmit signals and power efficiently under various conditions. |
| Insulation Resistance | Ensures proper insulation to prevent short circuits or leakage currents. |
| Continuity Testing | Verifies the integrity of conductive paths for proper electrical connectivity. |
| Signal Integrity | Evaluates the ability to transmit high-frequency signals without distortion. |
| Power Integrity | Assesses the stability of power delivery to components. |
These evaluations highlight the reliability of traditional PCBs, making them indispensable in industries like automotive, aerospace, and consumer electronics.
Widespread Availability and Standardization
The widespread availability of traditional PCBs simplifies procurement and production processes. Their standardized designs ensure compatibility across various industries, reducing the need for custom solutions. This standardization also streamlines manufacturing, allowing you to benefit from faster production times and lower costs.
Traditional PCBs adhere to industry standards, ensuring consistent quality and performance. Their availability and standardization make them a practical choice for projects requiring dependable and cost-effective solutions. Whether you're designing consumer electronics or industrial machinery, traditional PCBs provide the reliability and accessibility you need to succeed.
Applications of Transparent Flexible PCBs vs Traditional PCBs
Applications of Transparent Flexible PCBs
Transparent flexible PCB applications span industries that demand innovation, lightweight designs, and aesthetic appeal. These PCBs are indispensable in wearable electronics, foldable devices, and compact gadgets. Their ability to combine flexibility with transparency makes them ideal for products requiring sleek designs and dynamic functionality.
- Wearable Devices: Transparent flexible PCBs enable ergonomic designs for smartwatches, fitness trackers, and health monitors. Their lightweight construction ensures comfort during prolonged use.
- Foldable Screens: Smartphones and tablets with foldable displays rely on transparent flexible PCBs to maintain functionality while bending.
- Medical Devices: Transparent PCBs enhance the design of diagnostic tools and surgical equipment, offering both functionality and visual appeal.
- LED Lighting Systems: Transparent flexible PCBs improve light diffusion and aesthetics in modern lighting solutions.
- Consumer Electronics: Transparent flexible PCB applications include touch panels and display systems, where optical clarity is essential.
Note: Transparent flexible PCBs are irreplaceable in industries prioritizing innovation and aesthetics. Their unique properties allow you to push the boundaries of design and functionality in modern electronics.
Applications of Traditional PCBs
Traditional PCBs dominate industries requiring durability, reliability, and cost-effectiveness. Their rigid structure and standardized manufacturing processes make them suitable for applications where flexibility and transparency are not critical.
- Telecommunications: Indicators, displays, high-frequency amplifiers, and filtering appliances rely on traditional PCBs for stable performance.
- Medical Equipment: Lights in surgical tools and diagnostic devices benefit from the durability of traditional PCBs.
- Automotive Systems: Engine control units, audio systems, and digital displays depend on traditional PCBs for consistent operation.
- Aerospace Technology: Satellites and communication equipment use traditional PCBs for their ability to withstand extreme conditions.
- Consumer Electronics: Devices like smartphones, televisions, and kitchen appliances rely on traditional PCBs for affordability and reliability.
- Military Applications: Automation networks, temperature sensors, and control tower systems utilize traditional PCBs for their proven reliability.
The versatility of traditional PCBs ensures their continued relevance across diverse industries. Their cost-effectiveness and durability make them the backbone of many electronic systems.
Emerging Trends in PCB Applications
The PCB industry is evolving rapidly, driven by advancements in technology and growing demand for innovative solutions. Emerging trends highlight the increasing adoption of transparent flexible PCBs and traditional PCBs in cutting-edge applications.
| Aspect | Details |
|---|---|
| Title | Advanced Semiconductor Packaging 2025-2035 |
| Focus | 2.5D and 3D packaging technologies |
| Applications | AI, data centers, autonomous vehicles, 5G, consumer electronics |
| Insights | Technology trends, industry challenges, and market forecasts |
- 5G Technology Integration: The expansion of 5G networks creates opportunities for PCB manufacturers. High-frequency boards and innovative materials are essential for supporting this technology.
- Wearable Devices: The growing popularity of smartwatches and fitness bands drives demand for flexible PCBs. Transparent flexible PCBs play a key role in advancing wearable technology.
- Automotive Electronics: The shift toward digital systems in vehicles increases the need for high-quality PCBs in infotainment and safety applications.
- Medical Devices: Smartphone integration in medical tools presents opportunities for high-reliability PCBs. Transparent flexible PCBs enhance the design and functionality of these devices.
- Smart Home Applications: The rise of smart home devices demands innovative PCB solutions for connectivity and automation.
Tip: Stay ahead of the curve by exploring emerging trends in PCB applications. Transparent flexible PCBs and traditional PCBs offer unique advantages that align with the evolving needs of modern technology.
Challenges and Limitations
Challenges of Transparent Flexible PCBs
Transparent flexible PCBs face unique challenges that stem from their innovative design and material composition. Their flexibility and transparency come at the cost of durability. Repeated bending or exposure to harsh environments can degrade their performance over time. Thin substrates, such as polyimide or polyester, are prone to mechanical damage during assembly or use. This fragility complicates manufacturing processes, increasing the likelihood of defects and raising production costs.
The higher electrical resistance of transparent conductive materials also impacts signal quality, especially in high-frequency applications. Maintaining transparency often limits the number of copper layers, reducing design flexibility and heat management capabilities. Additionally, environmental regulations require manufacturers to use sustainable materials, further increasing operational costs.
| Challenge/Trend | Description |
|---|---|
| Rising Cost of Raw Materials | Affects production expenses and profitability due to supply chain disruptions and geopolitical tensions. |
| Rapid Technological Advancements | Requires continuous investment in R&D, straining resources of smaller firms. |
| Shortage of Skilled Labor | Significant obstacle due to the need for specialized expertise in complex assembly processes. |
| Environmental Regulations | Companies must adhere to stringent standards, increasing operational costs. |
| Intense Market Competition | Pressures firms to innovate and improve efficiency, which can be financially burdensome. |
These challenges highlight the need for careful planning and investment when implementing transparent flexible PCB technology.
Challenges of Traditional PCBs
Traditional PCBs, while reliable, face limitations that stem from their rigid structure and standardized design. Their lack of flexibility restricts their use in applications requiring dynamic movement or irregular shapes. This rigidity makes them unsuitable for wearable devices or compact electronics, where adaptability is crucial.
Manufacturing traditional PCBs involves fewer specialized steps, but the rising cost of raw materials and environmental regulations still pose significant challenges. Companies must balance affordability with compliance, which can strain resources. Additionally, automated defect detection algorithms and non-destructive testing (NDT) techniques are essential for ensuring quality, but they add complexity to the production process.
- Various NDT techniques have advantages and disadvantages for PCB quality evaluation.
- High-reliability products benefit from using multiple testing technologies to detect defects.
- Automated defect detection algorithms can utilize images of PCB internal structures.
Despite these challenges, traditional PCBs remain indispensable for applications requiring durability and cost-effectiveness.
Factors to Consider When Choosing Between the Two
Selecting the right PCB depends on your project’s specific requirements. Transparent flexible PCBs excel in applications prioritizing flexibility, lightweight design, and aesthetic appeal. They are ideal for wearable devices, foldable screens, and compact electronics. However, their higher production costs and limited durability may not suit projects with tight budgets or demanding environments.
Traditional PCBs offer proven reliability and affordability, making them suitable for industries like automotive, aerospace, and consumer electronics. Their rigid structure ensures stability, but it limits their adaptability for innovative designs.
When choosing between the two, consider factors such as:
- Application Requirements: Does your project demand flexibility or durability?
- Budget Constraints: Can you afford the higher costs of transparent flexible PCBs?
- Environmental Conditions: Will the PCB face extreme temperatures or mechanical stress?
- Signal Quality Needs: Does your design require high-frequency signal transmission?
By evaluating these factors, you can select the PCB type that aligns with your technical and aesthetic goals.
Understanding the differences between transparent flexible PCBs and traditional PCBs helps you make informed decisions for your projects. Transparent flexible PCBs offer flexibility, lightweight design, and aesthetic appeal, making them ideal for wearable devices and compact electronics. Traditional PCBs, with their durability and cost-effectiveness, remain the backbone of industries like automotive and aerospace.
Choosing the right PCB depends on your specific needs. Consider factors like budget, application requirements, and environmental conditions. By exploring innovative PCB technologies, you can unlock new possibilities and create cutting-edge designs that stand out in today’s competitive market.
Tip: Evaluate your project’s priorities carefully to ensure the PCB you select aligns with your goals.
FAQ
What is the primary difference between transparent flexible PCBs and traditional PCBs?
Transparent flexible PCBs offer flexibility and transparency, making them ideal for wearable and compact devices. Traditional PCBs, however, prioritize rigidity and durability, which suits industrial and automotive applications. Your choice depends on the specific requirements of your project.
Are transparent flexible PCBs more expensive than traditional PCBs?
Yes, transparent flexible PCBs typically cost more due to specialized materials and advanced manufacturing processes. However, their unique features, such as lightweight design and adaptability, justify the investment for applications requiring innovation and aesthetics.
Can transparent flexible PCBs handle high-power applications?
Transparent flexible PCBs are not ideal for high-power applications. Their limited copper layers and higher electrical resistance can affect heat management. Traditional PCBs perform better in scenarios requiring efficient power handling and thermal stability.
Which industries benefit most from transparent flexible PCBs?
Industries like consumer electronics, medical devices, and wearables benefit most from transparent flexible PCBs. Their flexibility and transparency enable innovative designs for products such as foldable screens, fitness trackers, and diagnostic tools.
.png)
.png)
.png)
.png)
.png)
