Multilayer Flex Circuits: Elevating Connectivity and Performance

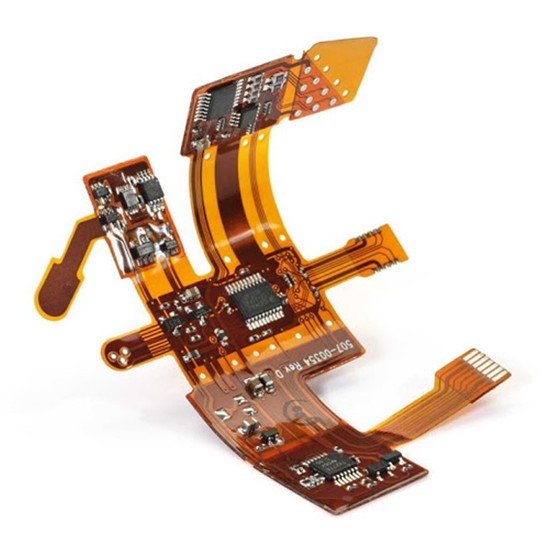

Multilayer Flex Circuits represent a sophisticated form of printed circuit boards characterized by multiple conductive layers sandwiched between flexible insulating substrates. These circuits play a pivotal role in advancing the connectivity and performance of electronic devices. Unlike traditional rigid PCBs, the flexibility of multilayer flex circuits allows for intricate designs, enabling them to conform to complex shapes and spaces within electronic devices. The significance lies in their ability to elevate connectivity standards and enhance overall performance, making them indispensable in modern electronics. As electronic devices continue to evolve, the demand for multilayer flex circuits becomes increasingly vital to meet the dynamic requirements of today's interconnected and high-performance technologies.

Fundamentals of Multilayer Flex Circuits

Understanding Flex Circuits

Termed as flexible printed circuits (FPCs), Multilayer Flex Circuits stand out as a specialized variant of printed circuit boards (PCBs) purposely designed for flexibility and bendability. Comprising multiple conductive layers crafted from materials such as copper, alongside insulating layers that facilitate flexibility, these circuits can conform to diverse shapes and contours. The deployment of flexible substrates, including polyimide or polyester, is instrumental in achieving this pliability.

Importance of Multilayer Design

The multilayer architecture of these circuits significantly amplifies their versatility and operational capabilities. Through the integration of multiple conductive layers, designers can attain heightened circuit complexity, enabling intricate connections and compact configurations. This layered design enhances signal integrity, diminishes electromagnetic interference, and elevates overall performance, distinguishing it from conventional single-layer or rigid PCBs.

Components and Materials Utilized

Multilayer flex circuits leverage specialized materials to balance flexibility with electrical integrity. Conductive layers typically feature copper traces, while insulating layers incorporate materials like polyimide or polyester films. Adhesive layers play a crucial role in bonding these components together. The meticulous selection of materials is pivotal in determining the circuit's robustness, thermal stability, and its ability to endure bending and flexing. Collectively, these components culminate in a resilient and versatile circuit solution tailored for diverse electronic applications.

Advantages of Multilayer Flex Circuits

Enhanced Flexibility and Bendability

Multilayer Flex Circuits stand out for their exceptional flexibility and bendability, surpassing the capabilities of rigid PCBs. Their capacity to adapt to intricate shapes and spaces within electronic devices fosters innovative and space-efficient designs, particularly beneficial for applications with dynamic form factors.

Improved Signal Integrity

The multilayer architecture of these circuits enhances signal integrity by minimizing interference and crosstalk. Multiple conductive layers ensure reliable and efficient transmission of electrical signals, a critical advantage in applications where signal accuracy is of utmost importance.

Higher Packaging Density

The layered composition of multilayer flex circuits enables increased packaging density. By sandwiching multiple conductive layers together, designers achieve compact and densely populated circuit layouts, saving space and facilitating the integration of more functionalities within limited areas.

Enhanced Reliability and Durability

Multilayer flex circuits exhibit heightened reliability and durability compared to conventional PCBs. The use of flexible materials and layered construction enhances resilience against mechanical stress, lowering the risk of component failure. This durability makes them well-suited for applications in harsh environments or those involving repeated flexing and bending.

Best FPC Innovative Design

In the realm of multilayer flex circuits, innovative designs pave the way for enhanced functionality and performance. These designs, typically comprising three or more flexible conductive layers with insulating layers in between, exhibit unique features and applications.

Composition and Structure

The essence of a multilayer flex circuit lies in its composition of flexible conductive layers interconnected by metalized holes, forming a conductive path. External layers are composed of polyimide insulating material. The design often involves a combination of double-sided and single-layer flex circuits, offering flexibility without the need for an existing flexible copper-clad laminate.

Flexibility Considerations

While multilayer flex circuits provide increased flexibility compared to rigid FR4 PCBs, the flexibility of single-sided or double-sided flexible PCBs is not entirely retained. Continuous lamination, though common in production, may not be suitable for designs requiring maximum flexibility.

Weight and Material Optimization

Multilayer flex circuits made of polyimide weigh at least 1/3 less than rigid FR4 PCBs. Despite losing some flexibility due to multiple layers, this trade-off is acceptable for applications where maximum flexibility is not a primary requirement. The most prevalent designs include 4L, 6L, and 8L circuits, with designs exceeding 10 layers being rare in the market.

Technical Specifications

Technical Specifications include multilayer circuitry with a range of 3 to 14 or more layers, a minimum line width/spacing of 4mil/4mil, polyimide substrates with thickness ranging from 1/2mil to 4mil, and copper thickness varying from 1/3OZ to 2OZ, available in both RA and ED types. Stiffeners offer options such as polyimide (0.075-0.20mm), FR4 (0.15-2.0mm), and punched or formed metal parts (0.075-1.0mm). Fabrication and lamination involve low-cost, conventional processes with completion through plated through-hole (PTH) based plating.

Finishing Touches

Finishing Touches encompass screened inks, photo-imageable soldermasks, or laminated coverlay dielectrics contributing to the visual and protective aspects of the circuit. Surface finishes include options like ENIG, electroplated nickel/gold, immersion silver, and tin, ensuring diverse applications based on specific requirements.

Special Features

Special Features highlight EMI shielding in multilayer flex circuits, enhancing their suitability for applications where signal integrity is critical.

The manufacturing processes for Multilayer Flex Circuits encompass crucial steps

Layer Lamination:

Initiated by layer lamination, this process bonds multiple layers of flexible substrate material using heat and pressure. The outcome is a stack of interconnected layers, forming the foundational structure of the multilayer flex circuit.

Etching and Plating

Following lamination, the desired circuit pattern is etched onto the substrate through chemical processes. Copper layers are selectively removed to shape the circuit traces. Subsequently, plating is applied to augment the thickness of the copper traces, ensuring conductivity and durability.

Assembly Techniques

Individual layers undergo assembly, incorporating components like resistors, capacitors, and integrated circuits onto the flexible substrate. This assembly phase may utilize automated or manual processes, depending on the complexity and production scale.

Testing and Quality Control

Rigorous testing is executed to verify the functionality and reliability of the multilayer flex circuit. This includes electrical testing to confirm the conductivity of circuit traces and inspections for physical defects. Stringent quality control measures are implemented to meet industry standards and specifications.

Future Trends of Multilayer Flex Circuits

Emerging Technologies in Multilayer Flex Circuits

As technology advances, multilayer flex circuits are poised to benefit from cutting-edge innovations. Miniaturization through advanced materials, such as flexible substrates and conductive inks, will enhance circuit design. Integration of AI and machine learning into circuitry is anticipated, enabling adaptive and intelligent functionality.

Potential Innovations in Connectivity and Performance

The future holds exciting possibilities for improved connectivity and performance in multilayer flex circuits. Enhanced data transfer rates, reduced latency, and increased bandwidth are expected through innovations like 5G integration. Novel approaches to power distribution and management will contribute to energy efficiency, addressing the growing demand for sustainable solutions.

Industry Outlook

The multilayer flex circuits industry is projected to witness robust growth. With increased demand for flexible and lightweight electronic solutions, manufacturers are likely to invest in research and development. Collaboration across industries, including healthcare, automotive, and consumer electronics, will drive diverse applications, shaping the industry's dynamic future.

Final Words

In conclusion, the future of multilayer flex circuits promises a transformative leap in connectivity and performance. Emerging technologies, characterized by flexible substrates and AI integration, herald a new era of miniaturization and intelligent functionality. Anticipated innovations in connectivity, such as 5G integration, will elevate data transfer rates and reduce latency, while novel approaches to power management ensure energy efficiency. The industry outlook is optimistic, with projected growth fueled by increased demand across diverse sectors. Multilayer flex circuits are set to play a pivotal role in shaping the electronic landscape, offering flexible and lightweight solutions that cater to the evolving needs of connectivity and performance in an ever-advancing technological era.
