3 Notices for Layout Double-Side BGA for FPC

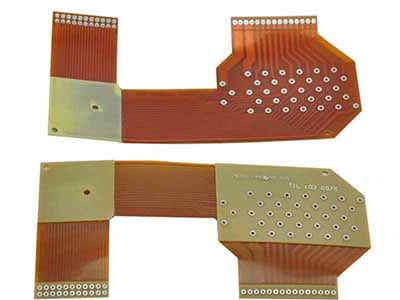

Layout double-side BGA for FPC is used in some products, but since the complexity of manufacturing process and maintainability need to be taken into consideration, the designers need to pay attention in followings:

1. Do not overlap when layout double-side BGA and a certain of distance is required left. The reason why to do that as it is difficult to repair if there is poor BGA on one of sides.

2. In order to prevent the BGA on the bottom from melting during the second time reflowing, it is required to decrease the bottom temperature in the second time reflowing. It is better to decrease the bottom temperature lower than to the melting temperature of solder joints to ensure that the solder joints do not melt again. What’s more, you can fix the bottom BGA with jig.

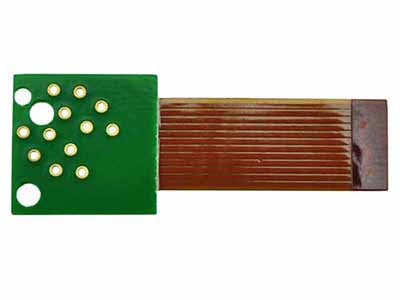

4 ways to increase deformation resistance for flex circuits:

1. The stress resistance of BGA can be strengthened by a supporting iron frame around it.

2. The stress resistance of BGA can be strengthened by gluing around it or on the corresponding back of flexible PCB.

3. If you aim at protecting the BGA, then you are able to add screw to fix the other parts around BGA. In this way, the other parts around BGA won’t deform easily.

4. Strengthening the outer shell of flex circuits to avoid its deformation affecting the inner circuit.
