Rigid Flex PCB Comparison

Selecting the right printed circuit board (PCB) for your project can significantly impact functionality, cost, and durability. Rigid, flex, and rigid flex PCBs serve unique purposes, yet their distinctions are often overlooked. For example, design and space requirements differ greatly among these PCB types, influencing compatibility and performance. The global rigid flex PCB market, valued at USD 22.1 billion in 2023, reflects the rising demand for versatile designs. Consumer electronics dominate this market with a 23.36% share, showcasing how application-specific suitability drives PCB selection. By understanding these differences, you can make smarter decisions that align with your project needs.

Key Takeaways

Learn how rigid, flex, and rigid-flex PCBs are different.
Think about what your project needs, like strength or bending.
Check the costs of each type and plan for the future.
Use rigid-flex PCBs for small designs; they mix both types' benefits.

Overview of Rigid, Flex, and Rigid-Flex PCBs

Rigid PCB: Definition and Features

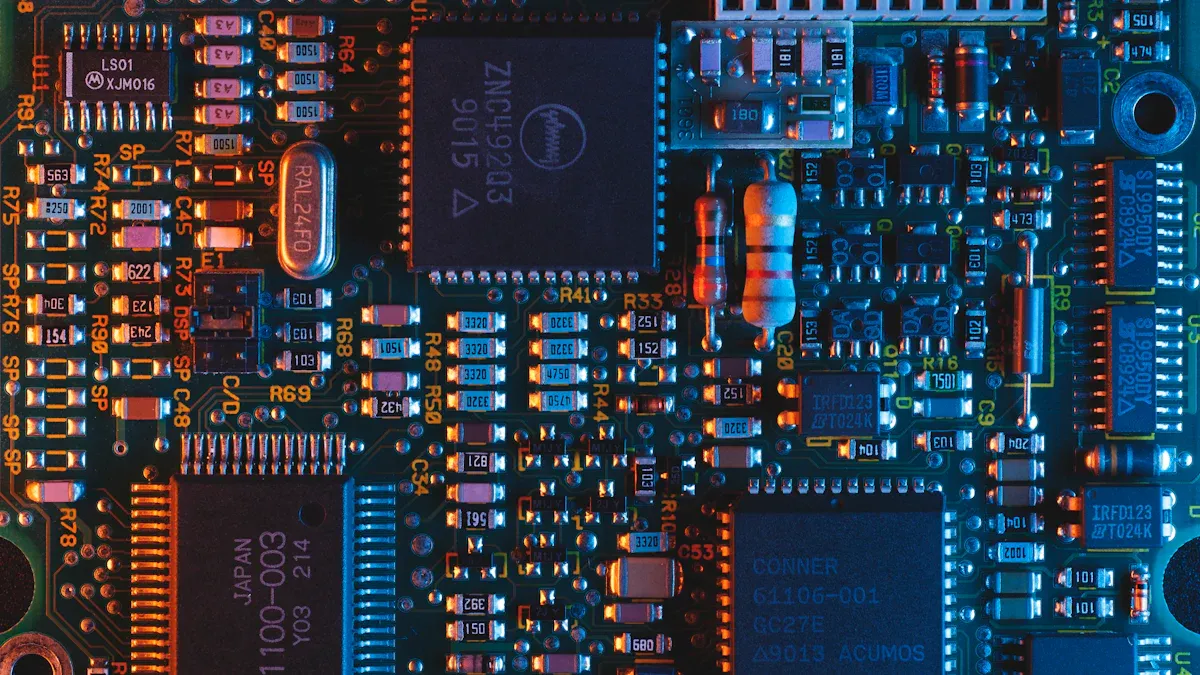

Rigid PCBs are the most common type of printed circuit boards, characterized by their solid and inflexible structure. These boards use materials like FR-4, polyimide, or ceramic as the base substrate, ensuring mechanical stability and durability. Rigid PCBs are ideal for applications requiring fixed shapes, such as desktop computers, televisions, and automotive systems.

Key features of rigid PCBs include:

Base Material: Options like FR-4 and ceramic provide excellent thermal and electrical insulation.
Copper Foil: Thickness and surface treatment influence current capacity and heat dissipation.
Solder Mask: Protects circuits from environmental damage and ensures insulation.
Reinforcement Materials: Fiberglass enhances mechanical strength, making these boards suitable for high-stress environments.

Specification/Feature	Description
Base Material (Substrate)	Common materials include FR-4, polyimide, ceramic, and metal-core, each with unique properties.
Copper Foil	Factors include thickness, surface treatment, and roughness, affecting current capacity and heat dissipation.
Solder Mask and Coatings	Provide insulation and protection; considerations include temperature resistance and chemical compatibility.
Reinforcement Materials	Fiberglass or aramid fibers enhance mechanical strength and stability, crucial for high-stress applications.

Flex PCB: Definition and Features

Flex PCBs, or flexible printed circuit boards, are designed to bend and twist without compromising functionality. These boards use flexible materials like polyimide or polyester film, making them lightweight and adaptable to compact spaces. Flex PCBs are commonly found in wearable devices, foldable smartphones, and medical equipment.

Key features of flex PCBs include:

Flexibility: Allows for dynamic bending and folding, ideal for compact designs.
Lightweight: Reduces overall device weight, enhancing portability.
Durability: Withstands repeated mechanical stress, making it suitable for dynamic applications.
Customizability: Supports complex shapes and designs for unique applications.

Rigid-Flex PCB: Definition and Features

Rigid-flex PCBs combine the best attributes of rigid and flex PCBs, offering a hybrid solution for modern electronic designs. These boards integrate rigid sections for component mounting and flexible sections for interconnections, enabling seamless integration in compact and complex devices.

Key features of rigid-flex PCBs include:

Hybrid Design: Combines rigid and flexible layers for enhanced functionality.
Space Efficiency: Reduces the need for connectors and cables, saving space.
Durability: Offers improved mechanical strength and reliability.
Application Versatility: Suitable for aerospace, medical devices, and consumer electronics.

Industry standards like IPC-6013 and IPC-2223 ensure the performance and reliability of rigid-flex circuits. For example:

IPC-6013: Validates thermal cycling and bending performance during prototyping.
IPC-2223: Ensures seamless integration in hybrid systems like IoT devices and wearables.

Rigid-flex PCBs provide a cost-effective solution for complex designs, despite their higher price compared to traditional options. Their ability to combine the strengths of rigid and flex PCBs makes them a preferred choice for demanding applications.

Advantages of Rigid, Flex, and Rigid-Flex PCBs

Understanding the advantages of rigid, flex, and rigid-flex PCBs can help you make informed decisions for your projects. Each type offers unique benefits tailored to specific applications.

Increased Reliability: Rigid-flex designs reduce the number of solder joints and connectors, minimizing connection issues and premature failures. This makes them ideal for high-performance applications.
Compact Design: Flex PCBs and rigid-flex PCBs save space and reduce weight, enabling compact and lightweight devices. This is particularly beneficial for wearable technology and portable electronics.
Enhanced Durability: Rigid PCBs provide mechanical stability, while flex PCBs offer resistance to repeated bending. Rigid-flex PCBs combine these strengths, ensuring durability in dynamic environments.
Cost Efficiency: While the initial price of rigid-flex PCBs may be higher, their streamlined assembly process and reduced material requirements lower overall manufacturing costs.
Thermal Stability: Flex PCBs, often made with polyimide, withstand high temperatures, making them suitable for harsh environments.
Improved Performance: Rigid-flex PCBs enhance airflow and heat dissipation, ensuring optimal performance in electronic devices.
Tip: Choosing the right PCB type can significantly impact your product's reliability, cost, and performance. Evaluate your project's specific needs to maximize these advantages.

Common Applications of Rigid, Flex, and Rigid-Flex PCBs

Rigid, flex, and rigid-flex PCBs serve diverse industries, each excelling in specific applications.

Rigid PCBs: These are widely used in consumer electronics like televisions, desktop computers, and automotive systems. Their solid structure ensures stability and reliability in fixed designs.
Flex PCBs: Their adaptability makes them ideal for wearable devices, foldable smartphones, and medical equipment. The 360-degree bendability of flex PCBs allows for innovative designs in compact spaces.
Rigid-Flex PCBs: These are commonly found in aerospace, medical devices, and handheld electronics. Their hybrid design supports tight packaging and integrates multiple PCBs into a single unit, reducing the need for connectors and cables.

For example, rigid-flex PCBs are often used in IoT devices, where space efficiency and reliability are critical. Similarly, flex PCBs are preferred in medical devices due to their lightweight and flexible nature, enabling precise and compact designs.

Note: The versatility of these PCBs allows them to meet the demands of modern technology, from consumer gadgets to advanced aerospace systems.

Key Similarities in Rigid, Flex, and Rigid-Flex PCBs

Shared Functionalities

Rigid, flex, and rigid-flex PCBs share several core functionalities that make them indispensable in modern electronics. All three types enhance signal integrity by minimizing interconnects, which reduces noise and electromagnetic interference (EMI). This ensures reliable performance in high-speed applications. Additionally, these PCBs offer high reliability due to fewer solder joints, lowering the risk of mechanical failure. Their compact and space-efficient designs eliminate the need for bulky connectors and cables, making them ideal for lightweight and portable devices.

Performance Metric	Description
Enhanced Signal Integrity	Minimizes interconnects, reducing noise and EMI.
High Reliability	Reduces risk of failure due to fewer solder joints; can bend and flex without breaking.
Compact and Space-efficient Design	Fewer connectors and cables lead to lightweight and compact devices suitable for various applications.
Improved Mechanical Stability	Increased ability to withstand higher mechanical stress, enhancing overall stability.

These shared functionalities demonstrate why these PCBs are widely adopted across industries, from consumer electronics to aerospace systems.

Common Materials Used

The materials used in rigid, flex, and rigid-flex PCBs contribute significantly to their performance and versatility. Copper serves as the primary conductive material across all types, with rolled-annealed copper preferred for flexible sections due to its ability to endure repeated bending. Adhesives like acrylic and epoxy are commonly used, while polyimide-based adhesives, though rare, offer superior thermal resistance.

Material	Maximum Temperature	Dielectric Strength	Cost
Polyimide (Kapton)	400°C	Excellent	Moderate
Polyester (PET)	120-150°C	Moderate	Low
Polyurethane	130°C	Good	Moderate
LCP	250°C	Excellent	High

For rigid PCBs, FR-4 remains the standard substrate due to its mechanical stability and cost-effectiveness. In contrast, flex PCBs rely on polyimide for its flexibility and thermal endurance. Rigid-flex designs combine these materials, balancing durability and adaptability.

Overlapping Use Cases

Despite their differences, rigid, flex, and rigid-flex PCBs often overlap in their applications. For example, all three types are used in consumer electronics, where compact designs and reliability are critical. Wearable devices frequently incorporate flex PCBs for their lightweight and bendable properties, while rigid-flex PCBs integrate seamlessly into IoT devices, offering both durability and space efficiency.

Feature	Rigid-Flex PCBs	Semi-Flex PCBs
Layer Stackup	Requires careful planning	Less complex than rigid-flex
Partitioning	Distinct rigid and flexible sections	Overall bending without distinct sections
Bend Radius Control	Critical for performance	Important but less stringent
Stress Relief Features	Necessary at transitions	Required for traces
Thermal Management	Must be managed across sections	Less critical but still important
Dynamic Bend Cycle Analysis	Essential for durability	Important for assessing fatigue
Mechanical Durability	More durable over bend cycles	Less durable, suitable for simple applications
Cost Consideration	Higher due to specialized manufacturing	Lower cost option for modest bendability

These overlapping use cases highlight the versatility of these PCBs, enabling them to meet the demands of diverse industries, from medical devices to automotive systems.

Key Differences in Rigid, Flex, and Rigid-Flex PCBs

Material Composition and Properties

The material composition of rigid, flex, and rigid-flex PCBs directly influences their performance, durability, and application suitability. Rigid PCBs primarily use FR-4 as the substrate, a material known for its mechanical stability and cost-effectiveness. This makes rigid PCBs ideal for applications requiring fixed shapes and robust structures.

Flex PCBs, on the other hand, rely on polyimide or polyester films. These materials provide the flexibility needed for dynamic bending and folding, making flex PCBs suitable for compact and portable devices. Polyimide, in particular, offers excellent thermal resistance, ensuring reliability in high-temperature environments.

Rigid-flex PCBs combine the materials used in both rigid and flex designs. The rigid sections use FR-4 or similar substrates for component mounting, while the flexible sections utilize polyimide for interconnections. This hybrid composition allows rigid-flex PCBs to balance durability and adaptability, making them a versatile choice for complex electronic systems.

PCB Type	Primary Materials Used	Key Properties
Rigid PCBs	FR-4, Ceramic	High mechanical stability, cost-effective
Flex PCBs	Polyimide, Polyester	Flexible, lightweight, thermally stable
Rigid-Flex PCBs	FR-4, Polyimide	Combines rigidity and flexibility

Tip: When selecting a PCB type, consider the material properties in relation to your project's environmental and mechanical requirements.

Design and Manufacturing Processes

The design and manufacturing processes for rigid, flex, and rigid-flex PCBs differ significantly due to their structural and functional requirements. Rigid PCBs follow a straightforward process involving plating, solder mask application, and silkscreen printing. These steps ensure electrical reliability and mechanical stability.

Flex PCBs require additional considerations for their flexible nature. The manufacturing process includes specialized steps to handle the thin and pliable materials, such as roll-to-roll processing. This ensures the flex PCB maintains its integrity during dynamic bending.

Rigid-flex PCBs involve a more complex process. The integration of rigid and flexible sections requires precise alignment and bonding techniques. Manufacturers must account for varying thermal expansion properties between the materials to prevent delamination. Despite the complexity, rigid-flex PCBs offer streamlined assembly by reducing the need for connectors and cables.

PCB Type	Manufacturing Process Steps	Efficiency Metrics
Rigid PCBs	Plating, Solder Mask, Silkscreen Printing	Electrical Testing, Thermal Cycling
Flex PCBs	Plating, Solder Mask, Silkscreen Printing	Electrical Testing, Thermal Cycling
Rigid-Flex PCBs	Plating, Solder Mask, Silkscreen Printing	Electrical Testing, Thermal Cycling

Note: The manufacturing process for rigid-flex PCBs demands higher precision, which contributes to their enhanced reliability and performance.

Cost Comparison: Rigid, Flex, and Rigid-Flex PCBs

The cost of manufacturing PCBs varies based on material costs, design complexity, and production processes. Rigid PCBs are the most cost-effective option due to their simpler design and lower material costs. Flex PCBs, while more expensive than rigid PCBs, offer a moderate price point due to the use of specialized materials like polyimide.

Rigid-flex PCBs, however, represent the highest price category. The primary cost driver is the use of no-flow prepreg, a specialized material that prevents resin overflow during manufacturing. This material can be up to 12 times more expensive than standard prepregs. Additionally, the complex manufacturing process and the need for precise alignment further increase the cost.

Cost Factor	Rigid PCBs	Flex PCBs	Rigid-Flex PCBs
Fabrication Costs	Lower	Moderate	Higher
Material Costs	Lower	Moderate	Highest
Additional Design Costs	Yes	Yes	No
Manufacturing and Testing Costs	Higher	Higher	Lower
Reliability Issues	More	More	Fewer

Rigid-flex PCBs can cost about 7 times more than standard rigid boards.
The raw material costs for rigid-flex PCBs can be up to 12 times higher than those for standard rigid boards.

Despite the higher price, rigid-flex PCBs often justify the investment by reducing assembly costs and improving reliability. Their ability to integrate multiple PCBs into a single unit eliminates the need for connectors and cables, resulting in long-term cost savings.

Tip: Conduct a thorough cost comparison to determine whether the benefits of rigid-flex PCBs align with your project's budget and performance requirements.

Durability and Flexibility

Durability and flexibility are critical factors when selecting the right PCB for your project. Each type—rigid, flex, and rigid-flex—offers unique characteristics that cater to specific durability and flexibility requirements.

Rigid PCBs excel in applications requiring mechanical stability and resistance to environmental stress. Their solid structure ensures long-term reliability in fixed designs, such as automotive systems and industrial machinery. These boards withstand high mechanical loads and thermal cycling, making them ideal for environments with fluctuating temperatures or vibrations.

Flex PCBs, on the other hand, prioritize adaptability. Their ability to bend and twist without compromising functionality makes them suitable for dynamic applications like wearable devices and robotics. These boards endure repeated mechanical stress, maintaining performance even in devices with moving parts. Additionally, flex PCBs integrate seamlessly with mechanical components, creating compact and efficient designs.

Rigid-flex PCBs combine the strengths of both rigid and flex designs. The rigid sections provide structural support for components, while the flexible sections enable dynamic interconnections. This hybrid design enhances durability by reducing the risk of mechanical failure at solder joints and connectors. Rigid-flex PCBs are particularly effective in compact electronics, such as smartphones and medical devices, where space efficiency and reliability are paramount.

Tip: When evaluating durability and flexibility, consider the environmental conditions and mechanical demands of your application. Rigid PCBs offer stability, flex PCBs provide adaptability, and rigid-flex designs balance both attributes for complex projects.

Application-Specific Suitability

The suitability of rigid, flex, and rigid-flex PCBs depends on the specific requirements of your application. Each type caters to distinct performance needs, ensuring optimal functionality in diverse industries.

Flex PCBs: These boards are best for applications requiring maximum flexibility. Wearable devices benefit from their lightweight and bendable nature, while robotics leverage their ability to integrate with mechanical functions. Flex PCBs also create compact designs, reducing assembly complexity in portable electronics.
Rigid-Flex PCBs: These hybrid boards excel in applications needing structural support combined with flexibility. Compact electronics, such as smartphones and medical devices, rely on rigid-flex designs for their space efficiency and reliability. Controlled impedance and strategic stack-ups ensure signal integrity in high-speed applications, making rigid-flex PCBs ideal for IoT devices and aerospace systems.
Rigid PCBs: These boards are suitable for projects requiring fixed shapes and robust structures. Automotive systems and industrial machinery benefit from their mechanical stability and cost-effectiveness. Rigid PCBs also perform well in environments with high thermal and mechanical stress.

PCB configuration plays a vital role in application-specific suitability. For example, trace geometry and dielectric selection impact impedance values, while shielding and signal integrity depend on the layer stack-up. These factors determine the performance of PCBs in demanding applications, such as high-speed data transmission or harsh environmental conditions.

Note: Matching the PCB type to your project's requirements ensures optimal performance and reliability. Flex PCBs offer adaptability, rigid-flex designs provide versatility, and rigid PCBs deliver stability for fixed applications.

Factors to Consider When Choosing a PCB Type

Cost Considerations and Budget Constraints

When selecting a PCB type, understanding the cost implications is crucial. The price of rigid, flex, and rigid-flex PCBs varies significantly due to differences in materials, design complexity, and manufacturing processes. Rigid PCBs are the most affordable option, offering cost-effective solutions for projects with straightforward designs. Flex PCBs, while moderately priced, require specialized materials like polyimide, which increase production costs. Rigid-flex PCBs represent the highest price category due to their hybrid design and complex manufacturing requirements.

Engineering design costs often consume a large portion of your budget. Factors such as layer count, assembly requirements, and design complexity directly influence these expenses. For instance, rigid-flex PCBs may cost up to seven times more than rigid PCBs due to the use of no-flow prepreg and precise alignment techniques. Advanced design software can help you mitigate unexpected costs by enabling better planning and resource allocation.

Market Segment	Cost Impact Description
Consumer Electronics	Facing 4-7% cost increases; accelerating product launches to reset price expectations.
Medical and Defense	More resilient due to regulatory constraints favoring domestic sourcing; higher tolerance for cost increases.
Gaming Hardware	Experiencing delays in new product introductions due to cost pressures.

Tip: To optimize your budget, evaluate the long-term benefits of rigid-flex PCBs, such as reduced assembly costs and improved reliability. While the upfront price may be higher, the streamlined design often results in cost savings over time.

Durability and Environmental Requirements

Durability plays a pivotal role in determining the suitability of a PCB type for your project. Rigid PCBs excel in environments with high mechanical stress and fluctuating temperatures. Their solid structure ensures long-term reliability, making them ideal for automotive systems and industrial machinery. Flex PCBs, on the other hand, prioritize adaptability. These boards withstand repeated bending and twisting, maintaining functionality in dynamic applications like wearable devices and robotics.

Rigid-flex PCBs combine the strengths of both rigid and flex designs. The rigid sections provide structural support, while the flexible sections enable dynamic interconnections. This hybrid design enhances durability by reducing the risk of mechanical failure at solder joints and connectors. Rigid-flex PCBs are particularly effective in aerospace and medical devices, where reliability under harsh conditions is critical.

Certification	Description	Relevance to PCB Manufacturing
ISO 9001	Ensures a consistent approach to manufacturing processes.	High
UL	Verifies that the PCBs meet stringent safety standards.	High
IPC Standards	Provides clear guidelines on acceptability criteria for PCBs.	High

Note: When evaluating durability, consider environmental factors such as temperature, humidity, and mechanical stress. Rigid PCBs offer stability, flex PCBs provide adaptability, and rigid-flex designs balance both attributes for demanding applications.

Design Complexity and Space Limitations

Design complexity and space limitations significantly influence your choice of PCB type. As devices become smaller while requiring more functionality, you face challenges related to PCB layout and routing constraints. Flex PCBs excel in compact designs, allowing you to create lightweight and portable devices. Their ability to bend and twist makes them ideal for wearable technology and foldable smartphones.

Rigid-flex PCBs offer a hybrid solution for complex designs. By integrating rigid and flexible sections, these boards reduce the need for connectors and cables, saving valuable space. For example, a medical device company used HDI PCB design guidelines to develop compact diagnostic equipment, enhancing functionality within limited space. Similarly, an automotive electronics manufacturer optimized space within vehicle architecture by applying these guidelines to advanced driver assistance systems.

Capability Category	Specific Evaluation Criteria	Importance
PCB Types Supported	Assess if they specialize or have experience in your needed type.	High
Material Expertise	Check their knowledge of material properties and selection process.	High
Manufacturing Technology	Confirm their ability to produce tight tolerances.	High
Layer Count Capability	Verify the maximum layer count.	High
Tolerances and Precision	Examine their control over track width, spacing, and via dimensions.	High
Surface Finish Options	Confirm they have expertise in finishes appropriate for your application.	Medium
Special Processes	Evaluate experience with special technologies.	Medium
Testing and Inspection	Ensure a complete verification of board quality.	Medium
Prototype and Small Batch	Verify their ability to handle small batch production.	Medium
Project Complexity Handling	Assess experience with projects similar to yours.	High

Tip: When dealing with space constraints, rigid-flex PCBs provide the most efficient solution. Their hybrid design supports complex layouts while maintaining reliability and performance.

Application-Specific Needs

When selecting a PCB type, understanding the specific needs of your application is critical. Each industry has unique requirements that influence the choice between rigid, flex, and rigid-flex PCBs. By aligning your selection with these needs, you can optimize performance, reliability, and cost-effectiveness.

Material Properties and Substrate Selection: The choice of substrate plays a pivotal role in determining the performance and cost of a PCB. For instance, rigid PCBs often use FR-4 for its mechanical stability and affordability, making them ideal for automotive systems and industrial machinery. Flex PCBs, on the other hand, rely on polyimide for its flexibility and thermal resistance, which suits wearable devices and medical equipment. Rigid-flex designs combine these materials, offering a hybrid solution for compact and complex applications.
Industry-Specific Demands: Original Equipment Manufacturers (OEMs) often require PCBs tailored to their product designs. For example, the healthcare sector demands specialized PCBs for medical devices that must comply with strict regulatory standards. These devices often integrate flex PCBs for their lightweight and adaptable nature, ensuring precision and reliability in compact designs.
Performance Criteria: High-speed applications, such as IoT devices and aerospace systems, benefit from rigid-flex PCBs due to their controlled impedance and enhanced signal integrity. Similarly, consumer electronics, like foldable smartphones, leverage the bendability of flex PCBs to achieve innovative designs.

By evaluating your application’s environmental conditions, mechanical stress, and regulatory requirements, you can determine the most suitable PCB type. For instance, rigid-flex PCBs excel in environments requiring both durability and adaptability, while rigid PCBs are better suited for fixed designs with high mechanical stability.

Tip: Collaborate with your PCB manufacturer to ensure the selected design meets your application’s specific needs. This approach minimizes risks and enhances the overall performance of your product.

Flex vs. Standard PCB Costs

Understanding the cost differences between flex PCBs and standard rigid PCBs is essential for effective budgeting. While rigid PCBs are generally more affordable, flex PCBs offer unique advantages that justify their higher price in certain applications.

Material Costs: Rigid PCBs use cost-effective materials like FR-4, making them suitable for projects with tight budgets. Flex PCBs, however, require specialized materials such as polyimide, which increases their production costs. Despite this, the lightweight and adaptable nature of flex PCBs often offsets their higher price by enabling innovative designs and reducing assembly complexity.
Manufacturing Complexity: The production process for flex PCBs involves additional steps, such as roll-to-roll processing, to handle their pliable materials. This complexity contributes to their higher cost compared to rigid PCBs, which follow a more straightforward manufacturing process.
Long-Term Value
