Advanced Connectivity Solutions: Unveiling the Power of Multilayer Rigid-Flex PCBs

In the ever-evolving landscape of advanced connectivity solutions, Multilayer Rigid-Flex Printed Circuit Boards (PCBs) stand out as a cutting-edge technology. These PCBs transcend conventional design constraints, seamlessly integrating rigid and flexible components to optimize spatial efficiency, improve overall reliability, and unlock unprecedented possibilities for innovative product designs. As the backbone of cutting-edge electronic systems, Multilayer Rigid-Flex PCBs redefine the parameters of connectivity, shaping the indurstry of electronics with their versatility and transformative capabilities.

Navigating the Foundations: Understanding the Fundamentals of Multilayer Rigid-Flex PCBs

Definition and Composition

Multilayer Rigid-Flex Printed Circuit Boards (PCBs) represent a sophisticated integration of rigid and flexible PCB elements. These boards consist of distinct sections, each serving a specialized purpose within the overall design.

  • Rigid Sections:

Rigid segments of Multilayer Rigid-Flex PCBs maintain a solid structure, providing stability for components that require a fixed position. These sections often house critical components such as processors and connectors, ensuring a stable platform for essential functionalities.

  • Flex Sections:

In contrast, flexible sections incorporate flexible substrates that enable the PCB to bend or fold. These sections accommodate the dynamic requirements of modern electronics, facilitating intricate designs and compact form factors. Flex sections are instrumental in applications where traditional rigid PCBs would be impractical or restrictive.

Advantages Over Traditional PCBs

Multilayer Rigid-Flex PCBs offer several advantages over their traditional counterparts, reshaping the landscape of electronic design and manufacturing.

  • Space Efficiency:

The seamless integration of rigid and flexible sections optimizes spatial utilization, enabling designers to create compact and space-efficient electronic devices. This is particularly advantageous in applications where size constraints are paramount, such as in portable electronics or miniaturized medical devices.

  • Improved Reliability:

The combination of rigid and flexible elements enhances the reliability of Multilayer Rigid-Flex PCBs. The absence of connectors and interconnecting cables, which are prone to wear and failure, reduces points of potential failure, thereby improving overall system reliability. This is especially crucial in mission-critical applications such as aerospace and medical devices.

  • Enhanced Design Flexibility:

Multilayer Rigid-Flex PCBs provide designers with unprecedented flexibility in shaping the physical form of electronic devices. The ability to incorporate both rigid and flexible elements in a single board enables innovative designs that were previously unattainable. This flexibility is particularly advantageous in applications requiring intricate shapes or unconventional layouts.

Design Principles

Layer Stackup Considerations

  • Rigid Layer Arrangement:

The arrangement of rigid layers in Multilayer Rigid-Flex PCBs is a critical design consideration. Designers must strategically place rigid sections to provide structural support where needed, ensuring stability for components requiring a fixed position.

  • Flex Layer Configuration:

The configuration of flexible layers is equally crucial. Flex layers must be strategically positioned to accommodate the desired bending or folding characteristics. Careful consideration of the placement and orientation of flex layers contributes to the overall functionality and durability of the PCB.

Material Selection

  • Substrate Materials:

Choosing appropriate substrate materials is fundamental to the performance of Multilayer Rigid-Flex PCBs. Substrates must balance rigidity and flexibility, providing the necessary support for rigid sections while allowing for the desired flexibility in designated areas.

  • Conductive Layers:

The selection of conductive materials for the layers is pivotal in ensuring optimal electrical performance. Conductive layers must exhibit conductivity, durability, and compatibility with the chosen substrate materials to guarantee reliable signal transmission and power distribution.

Thermal Management Strategies

  • Heat Dissipation in Rigid Sections:

Efficient heat dissipation is crucial in rigid sections, where components may generate significant heat. Designers must implement strategies such as thermal vias, heatsinks, or other cooling mechanisms to maintain optimal operating temperatures and prevent thermal stress on components.

  • Flexibility and Heat Resistance in Flex Sections:

Flex sections, while flexible, must also exhibit resistance to heat generated within the device. Materials with high heat resistance should be chosen for flex sections to ensure that the PCB maintains structural integrity and functionality even in the presence of elevated temperatures.

Manufacturing Processes

Lamination Techniques

  • Press Lamination:

Press lamination is a fundamental process in the fabrication of Multilayer Rigid-Flex PCBs. This technique involves applying heat and pressure to bond the layers together, ensuring a secure and durable connection between the rigid and flexible sections. Press lamination is instrumental in achieving the structural integrity required for the varied demands of modern electronic applications.

  • Vacuum Lamination:

Vacuum lamination is an alternative method that utilizes a vacuum chamber to remove air and other impurities during the bonding process. This technique enhances the overall quality of the Multilayer Rigid-Flex PCB by minimizing the risk of voids or delamination. Vacuum lamination is particularly advantageous in applications demanding a higher level of precision and reliability.

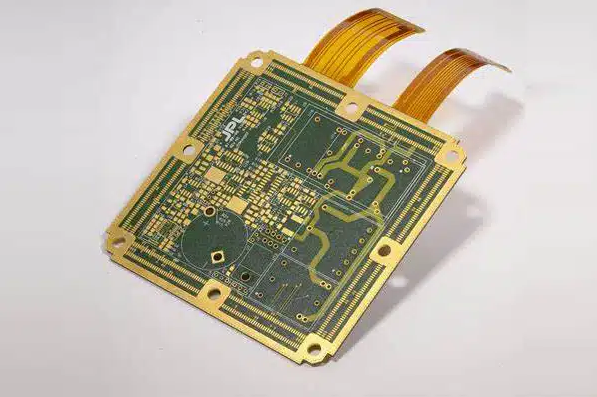

multilayer rigid flex pcb

Component Assembly

  • Placement and Soldering in Rigid Sections:

Precision is paramount in placing and soldering components in the rigid sections of Multilayer Rigid-Flex PCBs. Automated assembly processes ensure accurate component placement, and soldering techniques must accommodate the rigidity of these sections. This meticulous assembly guarantees the stability and reliability required for components in fixed positions.

  • Flexible Component Attachment:

Assembling components in the flexible sections requires specialized techniques to account for the pliability of the material. Flexible components, such as connectors and sensors, are attached with methods that accommodate movement and flexibility. Careful consideration is given to ensure that the flexibility of these sections is maintained without compromising the integrity of the attached components.

Quality Control Measures

  • Inspection and Testing Protocols:

Rigorous inspection and testing protocols are implemented throughout the manufacturing process. Automated optical inspection (AOI) and X-ray inspection verify the accuracy of component placement, solder joints, and overall structural integrity. Additionally, electrical testing ensures that the PCB meets performance specifications, providing a comprehensive assessment of its functionality.

  • Defect Detection and Correction:

Continuous monitoring for defects is a critical aspect of Multilayer Rigid-Flex PCB manufacturing. Automated systems identify potential issues such as misalignments, soldering defects, or delamination. In the event of defects, corrective measures are promptly applied, ranging from automated rework processes to manual intervention, ensuring that the final product meets stringent quality standards.

Applications of Multilayer Rigid-Flex PCBs

Aerospace and Defense

  • Space-Efficient Designs for Satellites:

Multilayer Rigid-Flex PCBs play a pivotal role in the aerospace industry by enabling the creation of compact and space-efficient electronic designs for satellites. The inherent flexibility allows for intricate layouts within the confined spaces of satellite structures, optimizing payload capacity and functionality.

  • Military-grade Reliability:

In military applications, where reliability is non-negotiable, Multilayer Rigid-Flex PCBs offer a solution with reduced points of failure. The combination of rigid and flexible elements enhances the durability and performance of electronic systems in challenging and dynamic environments.

Medical Devices

  • Miniaturization for Implantable Devices:

Multilayer Rigid-Flex PCBs contribute to the miniaturization of medical devices, particularly implantable ones. The compact and flexible nature of these PCBs allows for the integration of electronics into smaller and more discreet medical implants, facilitating advancements in healthcare technology.

  • Flexibility for Wearable Health Tech:

Wearable health technologies benefit from the flexibility provided by Multilayer Rigid-Flex PCBs. These PCBs enable the design of comfortable and adaptable wearables, accommodating the natural movements of the body while maintaining the necessary electronic functionalities for health monitoring and data transmission.

Consumer Electronics

  • Foldable and Bendable Devices:

Multilayer Rigid-Flex PCBs are instrumental in the development of foldable and bendable consumer electronics. From foldable smartphones to flexible displays, these PCBs enable innovative designs that enhance user experience and set new standards for device aesthetics and functionality.

  • High-Density Interconnects for Smartphones:

Smartphones demand high-density interconnects to accommodate a multitude of components within a limited space. Multilayer Rigid-Flex PCBs provide the necessary spatial efficiency and structural integrity for complex smartphone designs, supporting the integration of advanced features and ensuring seamless user experiences.

Integrate Multilayer Rigid-Flex PCBs in Your Designs Today!

In unveiling the power of Multilayer Rigid-Flex PCBs, we witness a transformative leap in advanced connectivity solutions. With unparalleled space efficiency, improved reliability, and enhanced design flexibility, these innovative PCBs redefine the possibilities across aerospace, medical, and consumer electronics. The seamless integration of rigid and flexible elements marks a new era in electronic design, promising a future where compactness meets reliability, and where the intricate interplay of technology shapes the way we connect and interact.
