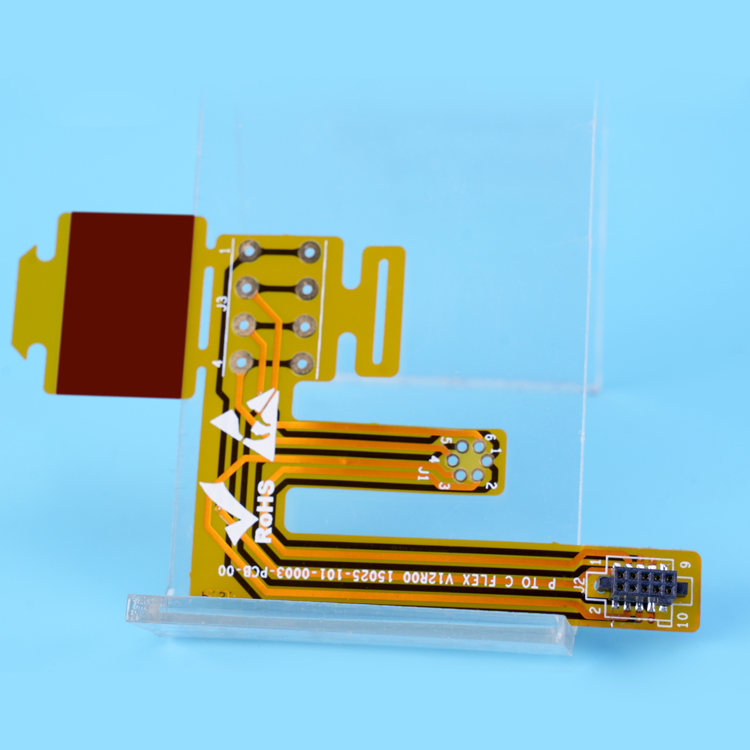

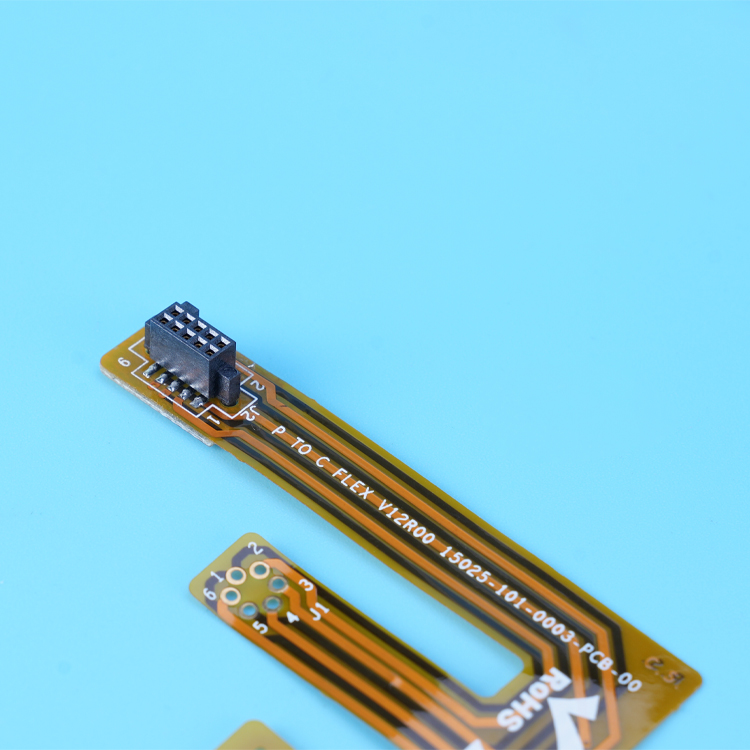

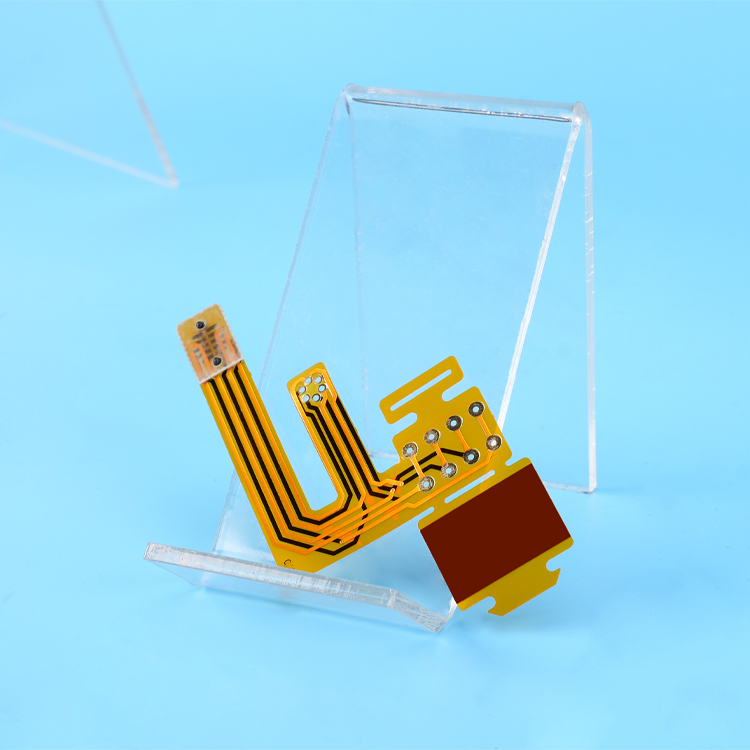

2 Layers Flexible PCB For Medical Diagnostic Testing System

2 Layers Flexible PCB For Medical Diagnostic Testing System

Copper thickness: 1/3OZ, 1/2OZ, 1OZ, 2OZ, 3OZ, 4OZ
Polymide thickness (in base material): 1/2mil, 1mil, 2mil, 3mil, 4mil
Board thickness: 0.10mm ~ 0.44mm
Maximum Dimension: 220*1,500mm
Min PTH: 0.10mm
Min LW/LS: 2mil/2mil (0.5OZ)

Inquiry Now

Flexible PCB Capabilities	Capabilities
Layer Count	1-30 Layers
Max Board Dimension	1L: 5002000mm; 2L:2501380mm
Min Board Thickness	0.05mm
Max Board Thickness	3.0mm
Conductor Thickness	1/3 OZ(12 um) - 4OZ(140um)
Min Line Width/Line Space	2/2mil (0.05/0.05mm)
Min Hole Diameter	4mil (0.10mm)
Min Hole Spacing	NPTH:16mil (0.4mm); PTH:20mil(0.5mm)
Min PAD Ring(Single)	3mil (0.075mm)
PTH Wall Thickness	0.59mil (15um)
Min Solder PAD Dia	10mil (0.25mm)
Min Soldermask Bridge	12mil (0.30mm)
Min BAG PAD Margin	12mil (0.30mm)
PTH/NPTH Dia Tolerance	PTH: ±3mil (0.075mm); NPTH: ±2mil (0.05mm)
Hole Position Deviation	±4mil (0.10mm)
Outline Tolerance	Laser: +0.15mm / -0.05mm; Die Punch: +0.10 / -0.20 mm
Max Aspect Ratio	8:1
Surface Treatment	ENIG, Flash Gold, Hard Gold Finger, Gold Plating(50mil), Gold Finger, Selected Gold Plating, ENEPIG, ENIPIG
Impedance Controlled	Value>50ohm: ±10%; Value≤50ohm: ±5 ohm

Flexible PCB Materials	Attribute
Brand	Dupont / Doosan / Grace / Panasonic / SYL / Tailfex / ThinFlex / Ventec
Base Material	Polyimide / PET
Base Material Thickness(exclude CU)	12um / 18um / 25um / 50um /75um / 100um / 125um / 150um
Coverlay Type	Polyimide(yellow,white,black,clear), PET; Soldermask oil (green,blue,black,white,yellow,red,clear)
Tg Value	130 / 150
Halogen Free	Yes
ROHS	Yes
Flammability	94V-0
Dielectric Strength	>=1.35 KV/mm
Wrap & Twist	≤ 1%

Prototype(<1m²)	Layers	Normal Service	Expedited Service
Flexible PCB	1 Layer	0.5 - 1 week	48 hours
	2 Layers	0.5 - 1 week	48 hours
	3 Layers	1.5 - 2 weeks	72 hours
	4 Layers	2.5 - 3 weeks	96 hours
	6 Layers	3 - 4 weeks	120 hours
	8 Layers	4 - 5 weeks	144 hours

Mass Production	Layers	Normal Service	Expedited Service
Flexible PCB	1 Layer	1.5 - 2 weeks	1 week
	2 Layers	2 - 2.5 weeks	1 week
	3 Layers	2.5 - 3 weeks	1.5 weeks
	4 Layers	3 - 4 weeks	1.5 weeks
	6 Layers	4 - 5 weeks	1.5 - 2 weeks
	8 Layers	5 - 7 weeks	2 - 3 weeks

Are you looking for flexible circuit manufacturers for your medical diagnostic testing machine?

Here is your not-bad choice! why do we stand out?

1. BSTFPC has been good at designing & prototyping & manufacturing flexible circuits for clients' specified products or systems, for 17 years.

2. We have delivered standard diagnostic testing machine flexible PCBs, infectious disease diagnostic system flex circuits, point-of-care testing machine flex PCBs, RADx PCBs, and Rapid PCR-based testing system FPC boards for medical industry applications.

3. Output monthly capability: 28900㎡; Factory area: 3000 square meters; Total number of employees: 160+.

4. Certified Company: ISO13485, IATF16494, RoHS.

5. On-time delivery: 97.2%; Covered countries: 40+; Satisfied clients: 3067+.

6. 5+ Engineer team: pre-sale engineer, postsale engineer, layout designer, FE engineer and EQ engineer.

What problems do our custom-designed flexible boards solve for medical diagnostic testing instruments?

Whether it is a heart rate detection, peripheral, non-invasive diagnostic testing system, the inner soft board is very thin and flexible, and it can be folded millions of times to meet the standard. In addition, considering quality issues, such as electrical conductivity, heat dissipation, flexibility of buttons, etc., BSTFPC not only provides 1-30 layer flex pcb options but also provides one-stop production services for membrane switches, metal dome and other related products. It completely solves the mass production and assembly needs of FPC for customers in the medical industry.

With years of experience in medical design and production, we share a lot of experience with our customers.
1. How to choose low-priced, high-matching materials to ensure quality and reduce costs?
2. How to adjust the performance of relevant parameters based on the existing OEM design, so that the diagnostic testing machine can be used more easily?
3. We can even guide the design of flexible circuits for iterative products based on experience. Instead of being a processing factory, do a good job in quality management.
