Exploring Bendable Boundaries: A Guide to Flexible PCB Materials

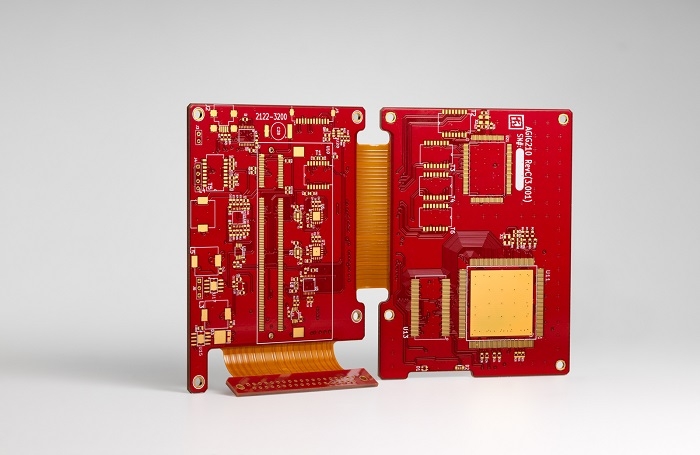

Flexible Printed Circuit Boards (PCBs) stand as a fundamental element in contemporary electronic design, facilitating the creation of circuits that are both highly customizable and efficient in their use of space. These boards distinguish themselves through their capacity to bend, flex, and twist, enabling their integration into areas where rigid PCBs fall short. This capability is essential for compact and evolving applications, enhancing both the design versatility and the operational performance and reliability under challenging conditions. With the ongoing trend towards smaller, wearable electronics, flexible PCBs are becoming increasingly vital. They play a pivotal role in driving forward innovations across various fields, including medical technology and aerospace, providing designers with extraordinary possibilities to push the boundaries of electronic product design.

Best FPC's Flexible PCB Materials

Flexible Circuit (FPC) Materials

The most prominent material for Flexible Circuits and Flex Printed Circuits (FPC) is produced by Dupont Corporation, known as "Kapton". This polyimide film material excels in heat resistance, maintains dimensional stability, and possesses a low dielectric constant of 3.6. Kapton is foundational for various applications, including:

1. Dupont Coverlay: Provides surface protection and insulation.
2. Dupont Copper Clad: Essential for creating conductive pathways.
3. Dupont Sheet Adhesive: Ensures layers adhere securely.

Other notable manufacturers like Rogers Corporation also contribute significantly to the FPC material market. Their offerings include:

Roger FPC Materials

1. Rogers-Liquid-PhotoImageable-Coverlay: Aims for precise photolithography processes.
2. Rogers-RFlex1000: Known for its flexibility and durability.
3. Rogers-RFlex2005UL: Offers enhanced thermal stability.

EMC Shield Material

For electromagnetic compatibility (EMC) shielding, materials such as SF_PC1000, SF_PC5000, and SF_PC5500 are essential. These materials are critical for:

EMC Shielding Characteristics: They are evaluated using the KEC method for frequency ranges between 0.2 to 1000 MHz and the TSE method for 100 to 2000 MHz, ensuring broad-spectrum EMC protection.

These materials from Best FPC are at the forefront of Flexible PCB technology, enabling advancements in electronics with their superior properties and adaptability.

Design Considerations for Flexible PCBs

Flex Circuit Design Principles

Designing flexible PCBs requires understanding the unique properties of flex materials and their behavior under mechanical stress. Key considerations include minimizing stress points by optimizing the layout and ensuring that bends occur in appropriate areas to maintain circuit integrity.

Bend Radius: Calculations and Implications

The bend radius is critical in flex PCB design, affecting both the performance and longevity of the circuit. A general rule is that the bend radius should be at least ten times the thickness of the PCB to prevent damage. This guideline helps in avoiding mechanical stress that could lead to failure.

Trace Width and Spacing for Flexibility

Trace width and spacing are vital for ensuring the flexibility of the PCB while maintaining electrical performance. Narrower traces can increase flexibility but may also increase resistance and affect signal integrity. Designers must balance these factors based on the application requirements.

Via Selection and Placement

Vias in flexible PCBs require careful consideration regarding their type, size, and placement to avoid creating stress points. Using teardrop-shaped vias and placing them away from bend areas can help in reducing the risk of cracking.

Designing for Durability and Reliability

Durability and reliability in flex PCBs are achieved by choosing appropriate materials, protective coatings, and design features that account for environmental exposure, flex cycles, and mechanical stresses the PCB will encounter during its lifetime.

Software Tools for Flexible PCB Design

Design software plays a crucial role in flexible PCB design, offering features like 3D modeling and bend simulation to predict how designs will perform under real-world conditions. Tools such as Altium Designer and Cadence offer specialized modules for flex PCB design.

Manufacturing Process of Flexible PCBs

Overview of the Manufacturing Process

The manufacturing of flexible PCBs involves several key steps, each critical to the performance and reliability of the final product. The process requires precision and attention to detail to accommodate the unique properties of flexible materials.

Key Steps in Flexible PCB Fabrication

1. Material Preparation: Selecting and preparing the base materials, including conductive layers and insulating films, tailored to the application's requirements.
2. Circuit Patterning: Transferring the circuit design onto the material, typically using photolithography or laser direct imaging (LDI) techniques.
3. Etching: Removing unwanted copper to reveal the desired circuit pattern, using chemical or plasma etching methods.
4. Drilling and Plating: Creating vias and through-holes for interlayer connections, followed by electroplating to establish conductive paths.
5. Cutting and Finishing: Trimming the PCB to its final dimensions and applying surface finishes to protect against oxidation and enhance solderability.

Challenges in Flexible PCB Manufacturing

Manufacturing flexible PCBs presents unique challenges, including handling delicate materials, ensuring uniform etching and plating across flexible surfaces, and achieving precise alignment in multi-layer designs. Overcoming these challenges requires specialized equipment and expertise, emphasizing the importance of choosing an experienced manufacturer.

Applications of Flexible PCBs

Wearable Electronics

Flexible PCBs are pivotal in the wearable electronics sector, enabling the design of compact, ergonomic devices. From fitness trackers to smartwatches, their adaptability allows for seamless integration into fabrics and ergonomic shapes, enhancing user comfort and device functionality.

Medical Devices

In the medical field, flexible PCBs revolutionize the design of diagnostic and monitoring equipment. Their use in wearable health monitors and implantable devices improves patient care by providing real-time health data and supporting minimally invasive procedures.

Aerospace and Defense

The aerospace and defense industries benefit from the lightweight and durable nature of flexible PCBs. They are used in space probes, satellites, and military equipment for their reliability and resistance to extreme environmental conditions, contributing to enhanced performance and safety.

Consumer Electronics

Flexible PCBs are ubiquitous in consumer electronics, found in smartphones, tablets, and flexible displays. Their flexibility enables innovative design possibilities, such as foldable screens and compact devices, driving the evolution of consumer technology.

Automotive Industry

The automotive industry utilizes flexible PCBs for their durability and space-saving attributes. They are essential in the manufacturing of vehicle control systems, LED lighting, and dashboard displays, facilitating the development of safer, more efficient vehicles.

Innovations and Future Trends in Flexible PCB Materials

Emerging Materials and Technologies

The exploration of new materials and technologies is key to advancing flexible PCB capabilities. Innovations in substrate materials and conductive layers aim to enhance the performance, flexibility, and thermal management of flexible PCBs.

Graphene and Other 2D Materials

Graphene, with its exceptional electrical, thermal, and mechanical properties, is at the forefront of research in flexible PCB materials. Along with other two-dimensional materials, graphene promises to revolutionize the electronics industry by offering superior flexibility, conductivity, and strength.

Conductive Inks for Printed Electronics

Developments in conductive inks are enabling the production of flexible PCBs through printing techniques. These inks allow for the direct deposition of electronic circuits onto flexible substrates, opening up new possibilities for low-cost, scalable manufacturing of flexible electronics.

Sustainability in Flexible PCB Manufacturing

The industry is increasingly focusing on sustainable practices in flexible PCB manufacturing. This includes the use of eco-friendly materials, recycling of waste, and energy-efficient processes, aiming to reduce the environmental impact of electronics production.

Future Trends in Flexible Electronics

The future of flexible electronics is poised for significant growth, driven by ongoing research and demand for innovative products. Trends indicate a move towards even thinner, more flexible devices, with applications expanding into new areas such as flexible solar panels and e-textiles. The integration of IoT and AI technologies with flexible PCBs will further enhance device functionality, leading to smarter, interconnected electronic solutions.

Final Words

"Exploring Bendable Boundaries: A Guide to Flexible PCB Materials" has journeyed through the intricate world of flexible PCBs, from foundational materials and design considerations to cutting-edge applications and future trends. This guide illuminates the crucial role of flexible PCBs in driving technological innovation across diverse sectors. As we stand on the brink of new discoveries and advancements, the exploration of flexible PCBs unfolds boundless possibilities, promising to revolutionize the design and functionality of electronic devices. Embracing the flexibility offered by these materials not only challenges current design norms but also opens the door to a future where electronics seamlessly integrate into our daily lives, further blurring the lines between technology and human experience.
